MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (0.00) |
+.260 (6.60) |
B |
+.141 (3.58) |
+.151 (3.83) |
C |
+.255 (6.48) |
+.014 (0.36) |
D |
+.125 (3.18) |
-.124 (3.15) |
E |
.000 (0.00) |
-.253 (6.43) |
F |
-.125 (3.18) |
-.124 (3.15) |
G |
-.255 (6.48) |
+.014 (0.36) |
H |
-.141 (3.58) |
+.151 (3.83) |
J |
.000 (0.00) |
+.042 (1.07) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
14 |
9 |
5 |
20 |
I |
A, C, E, G, J |
MS33711-9 |
4 |
12 Power |
B, D, F, H |

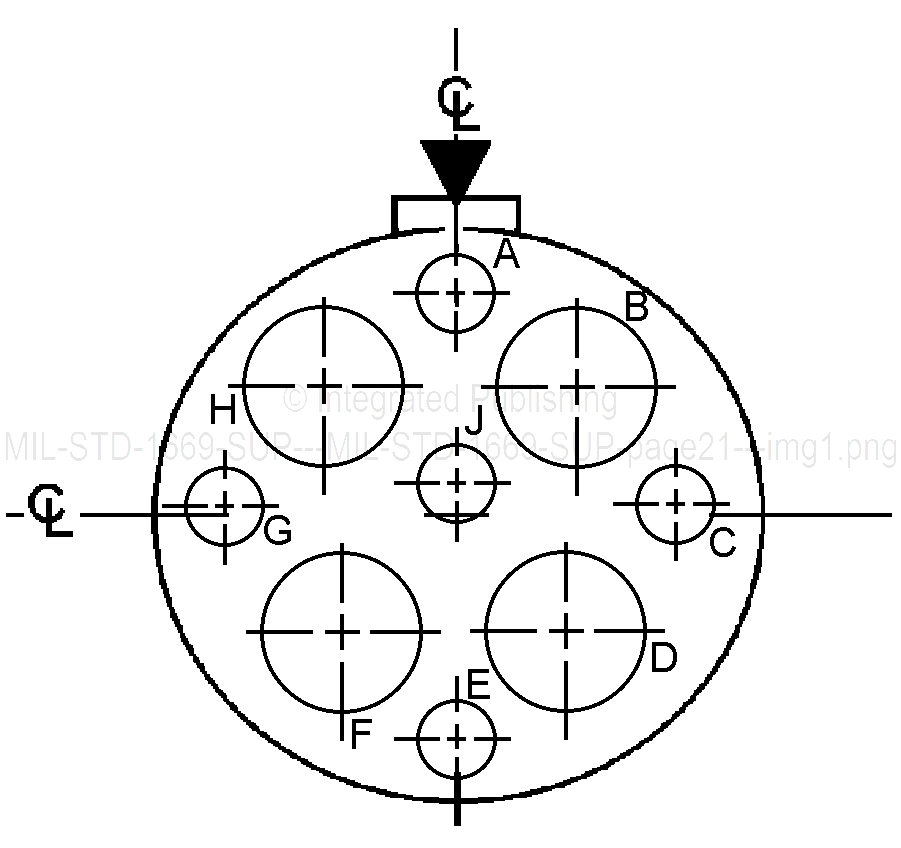

FIGURE 5. Shell size 14 - Continued.
18
