MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (.000) |
+.412 (10.46) |
B |
+.238 (6.04) |
+.412 (10.46) |
C |
+.357 (9.07) |
+.206 (5.23) |
D |
+.476 (12.09) |
.000 (.000) |
E |
+.357 (9.07) |
-.206 (5.23) |
F |
+.238 (6.04) |
-.412 (10.46) |
G |
.000 (.000) |
-.412 (10.46) |
H |
-.238 (6.04) |
-.412 (10.46) |
J |
-.357 (9.07) |
-.206 (5.23) |
K |
-.476 (12.09) |
.000 (.000) |
L |
-.357 (9.07) |
+.206 (5.23) |
M |
-.238 (6.04) |
+.412 (10.46) |
N |
-.119 (3.02) |
+.206 (5.23) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
24 |
19 |
19 |
12 |
I |
All |
MS33716-19 MS27733-19 |

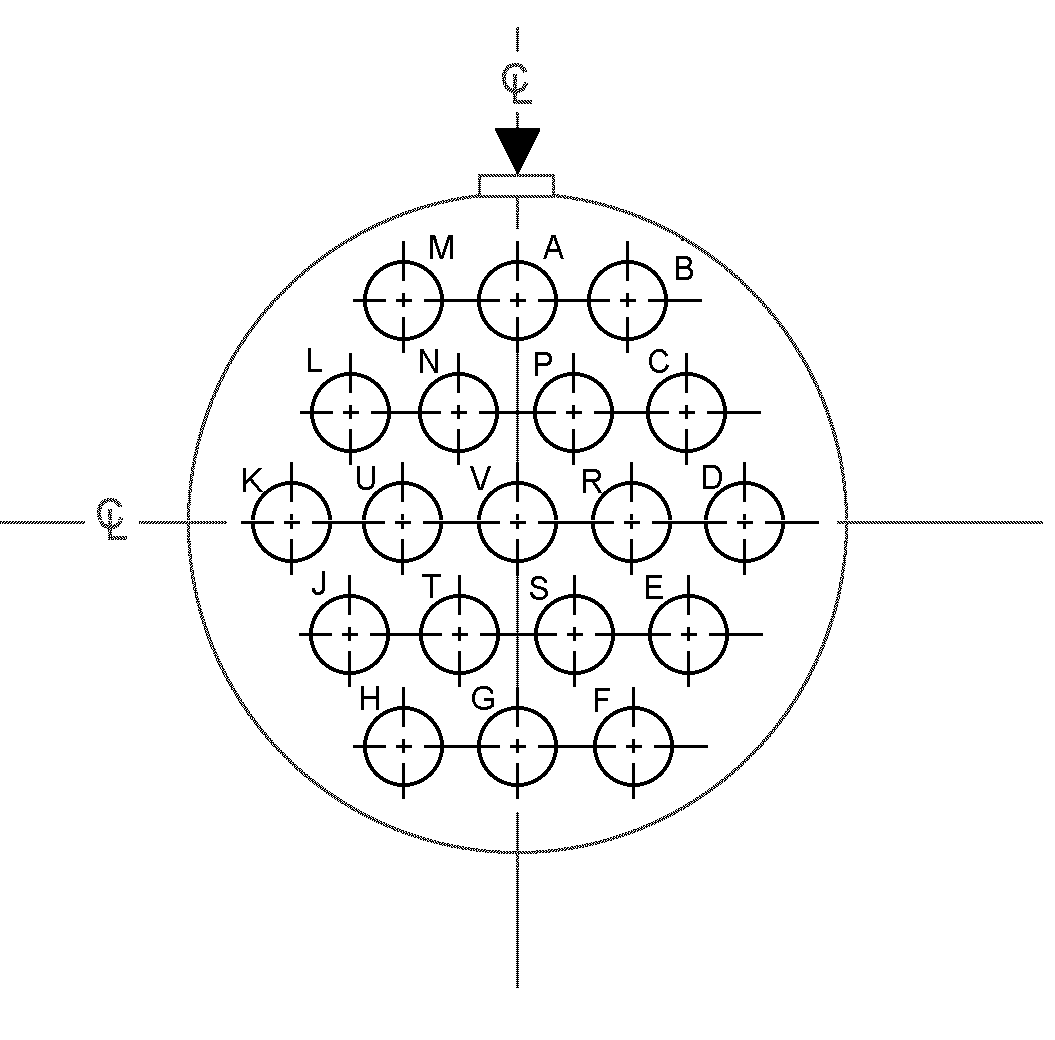

FIGuRE 10. Shell size 24.
57
