MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.065 (1.65) |
+.346 (8.79) |
B |
+.186 (4.72) |
+.299 (7.59) |
C |
+.282 (7.16) |
+.210 (5.33) |
D |
+.340 (8.67) |
+.093 (2.36) |
E |
+.351 (8.91) |
-.033 (0.84) |
F |
+.315 (8.00) |
-.158 (4.01) |
G |
+.236 (5.99) |
-.261 (6.63) |
H |
+.124 (3.15) |
-.330 (8.38) |
J |
-.124 (3.15) |
-.330 (8.38) |
K |
-.236 (5.99) |
-.261 (6.63) |
L |
-.315 (8.00) |
-.158 (4.01) |
M |
-.351 (8.91) |
-.033 (0.84) |
N |
-.340 (8.67) |
+.093 (2.36) |
p |
-.282 (7.16) |
+.210 (5.33) |
R |
-.186 (4.72) |
+.299 (7.59) |
S |
-.065 (1.65) |
+.346 (8.79) |
T |
+.084 (2.13) |
+.217 (5.51) |
u |
+.181 (4.60) |
+.129 (3.28) |
Shell |
Arrangement |
Number of |
Size contacts |
Service |
Contact |
Supersedes |
|
size |
number |
contacts |
rating |
location |
document |
||
18 |
30 |
1 |
16 |
I |
e |
MS33713-30 |
|
29 |
20 |
Remainder |
MS27730-30 |

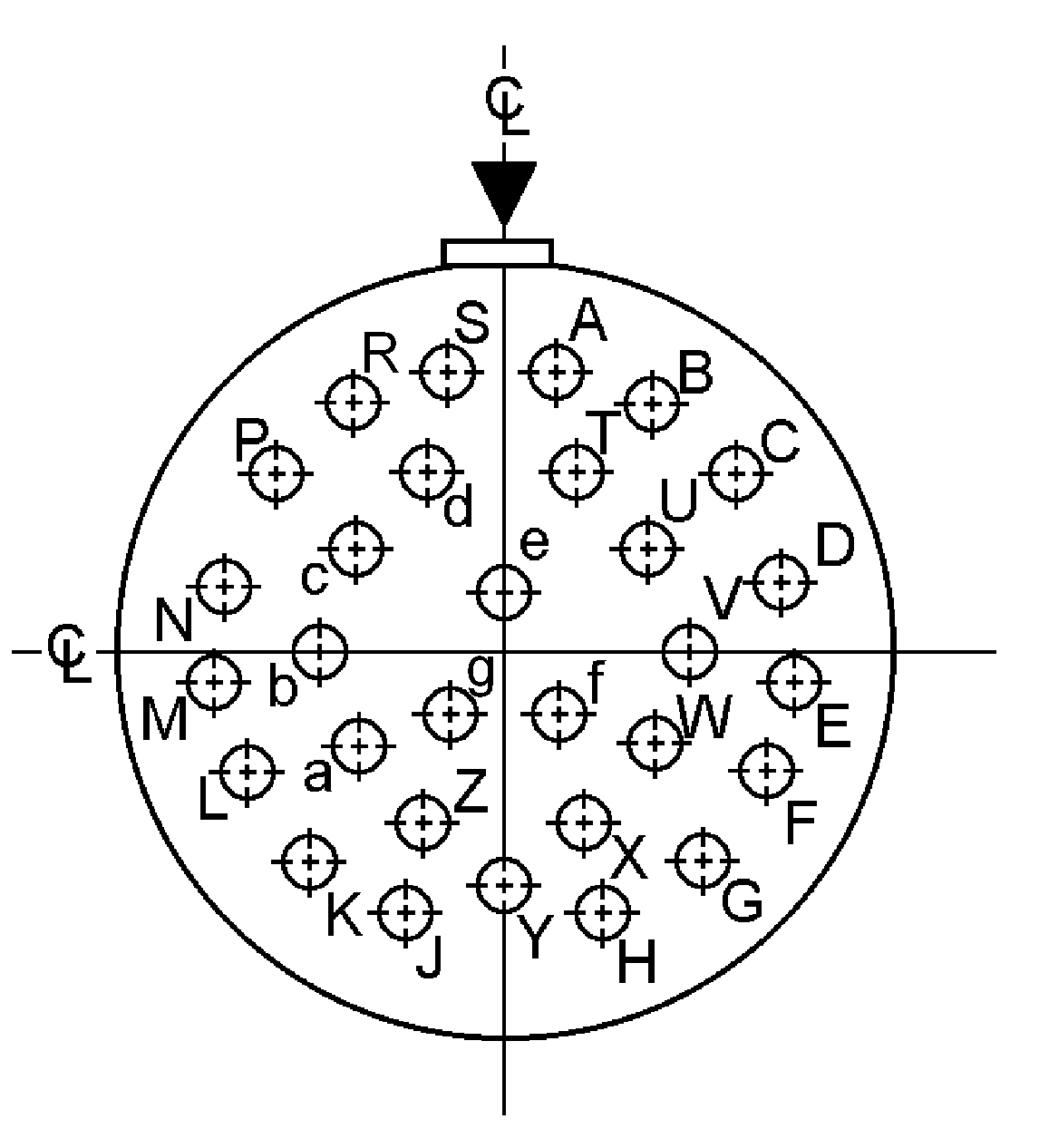

FIGuRE 7. Shell size 18 - Continued.
