MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.158 (4.01) |
+.455 (11.56) |
B |
+.316 (8.03) |
+.364 (9.25) |
C |
+.474 (12.04) |
+.091 (2.31) |
D |
+.474 (12.04) |
-.091 (2.31) |
E |
+.316 (8.03) |
-.364 (9.25) |
F |
+.158 (4.01) |
-.455 (11.56) |
G |
-.158 (4.01) |
-.455 (11.56) |
H |
-.316 (8.03) |
-.364 (9.25) |
J |
-.474 (12.04) |
-.091 (2.31) |
K |
-.474 (12.04) |
+.091 (2.31) |
L |
-.316 (8.03) |
+.364 (9.25) |
M |
-.158 (4.01) |
-.455 (11.56) |
N |
.000 (.000) |
+.364 (9.25) |
p |
+.158 (4.01) |
+.273 (6.93) |
Q |
+.316 (8.03) |
+.182 (4.62) |
R |
+.316 (8.03) |
.000 (.000) |
S |
+.316 (8.03) |
-.182 (4.62) |
T |
+.158 (4.01) |
-.273 (6.93) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
24 |
31 |
31 |
16 |
I |
All |
MS33716-31 MS27737-31 |

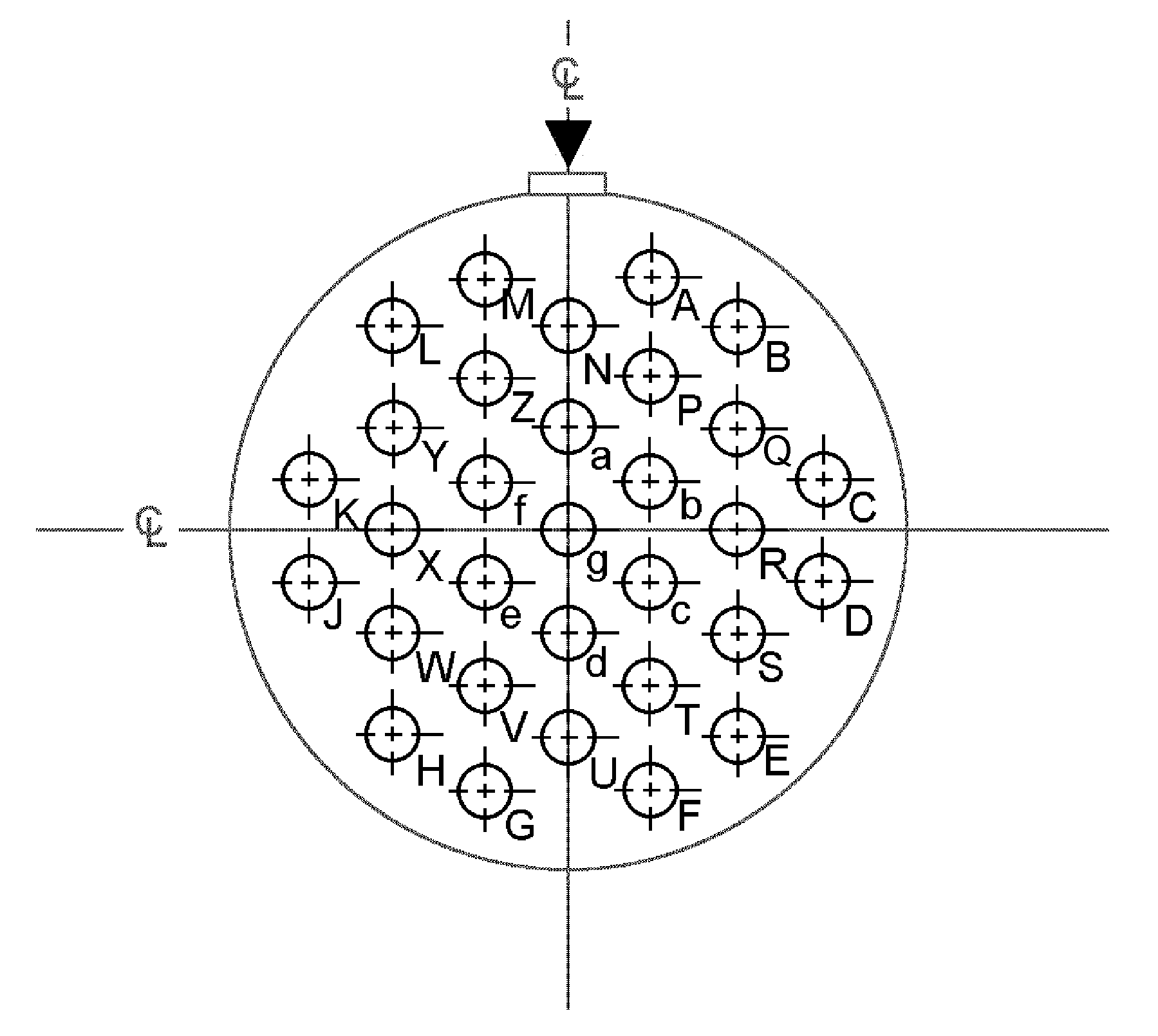

FIGuRE 10. Shell size 24 - Continued.
59
