MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.321 (8.15) |
B |
+.131 (3.33) |
+.293 (7.44) |
C |
+.239 (6.07) |
+.214 (5.44) |
D |
+.305 (7.75) |
+.099 (2.51) |
E |
+.319 (8.10) |
-.034 (0.86) |
F |
+.278 (7.06) |
-.161 (4.34) |
G |
+.189 (4.80) |
-.260 (6.60) |
H |
+.067 (1.70) |
-.314 (7.98) |
J |
-.067 (1.70) |
-.314 (7.98) |
K |
-.189 (4.80) |
-.260 (6.60) |
L |
-.278 (7.06) |
-.161 (4.34) |
M |
-.319 (8.10) |
-.034 (0.86) |
N |
-.305 (7.75) |
+.099 (2.51) |
p |
-.239 (6.07) |
+.214 (5.44) |
R |
-.131 (3.33) |
+.293 (7.44) |
S |
-.070 (1.79) |
+.177 (4.96) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
16 |
26 |
26 |
20 |
I |
All |
MS33712-26 |

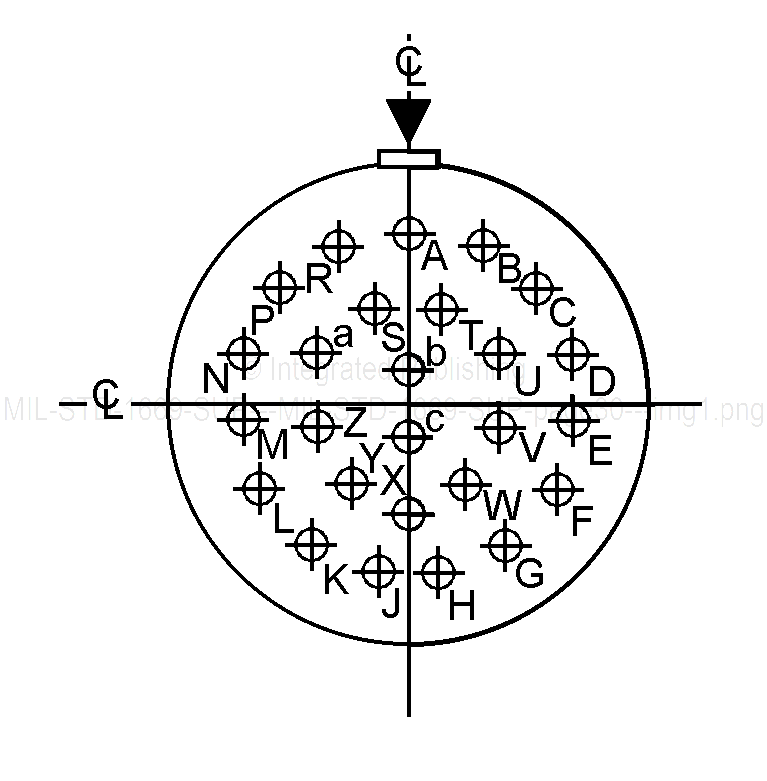

FIGuRE 6. Shell size 16 - Continued.
27
