MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.128 (3.25) |
+.385 (9.78) |
B |
+.289 (7.34) |
+.285 (7.24) |
C |
+.386 (9.80) |
+.123 (3.12) |
D |
+.400 (10.16) |
-.065 (1.65) |
E |
+.328 (8.33) |
-.239 (6.07) |
F |
+.183 (4.65) |
-.362 (9.19) |
G |
.000 (.000) |
-.406 (10.31) |
H |
-.183 (4.65) |
-.362 (9.19) |
J |
-.328 (8.33) |
-.239 (6.07) |
K |
-.400 (10.16) |
-.065 (1.65) |
L |
-.386 (9808) |
+.123 (3.12) |
M |
-.289 (7.34) |
+.285 (7.24) |
N |
-.128 (3.25) |
+.385 (9.78) |
p |
.000 (.000) |
+.245 (6.22) |
R |
+.160 (4.06) |
+.146 (3.71) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
22 |
21 |
21 |
16 |
II |
All |
MS33715-21 |

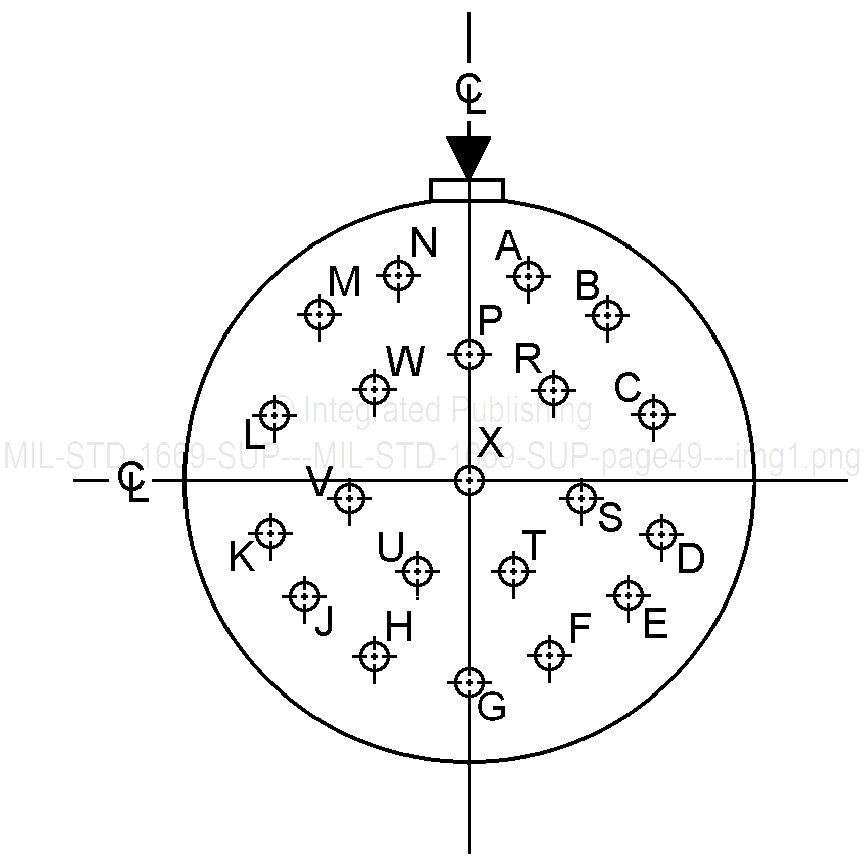

FIGuRE 9. Shell size 22 - Continued.
