MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.114 (2.90) |
+.425 (10.80) |
B |
+.311 (7.90) |
+.311 (7.90) |
C |
+.425 (10.80) |
+.114 (2.90) |
D |
+.425 (10.80) |
-.114 (2.90) |
E |
+.311 (7.90) |
-.311 (7.90) |
F |
+.114 (2.90) |
-.425 (10.80) |
G |
-.114 (2.90) |
-.425 (10.80) |
H |
-.311 (7.90) |
-.311 (7.90) |
J |
-.425 (10.80) |
-.114 (2.90) |
K |
-.425 (10.80) |
+.114 (2.90) |
L |
-.311 (7.90) |
+.311 (7.90) |
M |
-.114 (2.90) |
+.425 (10.80) |
N |
.000 (.000) |
+.228 (5.79) |
p |
+.197 (5.00) |
+.114 (2.90) |
R |
+.197 (5.00) |
-.114 (2.90) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
22 |
19 |
19 |
12 |
I |
All |
MS33715-19 |

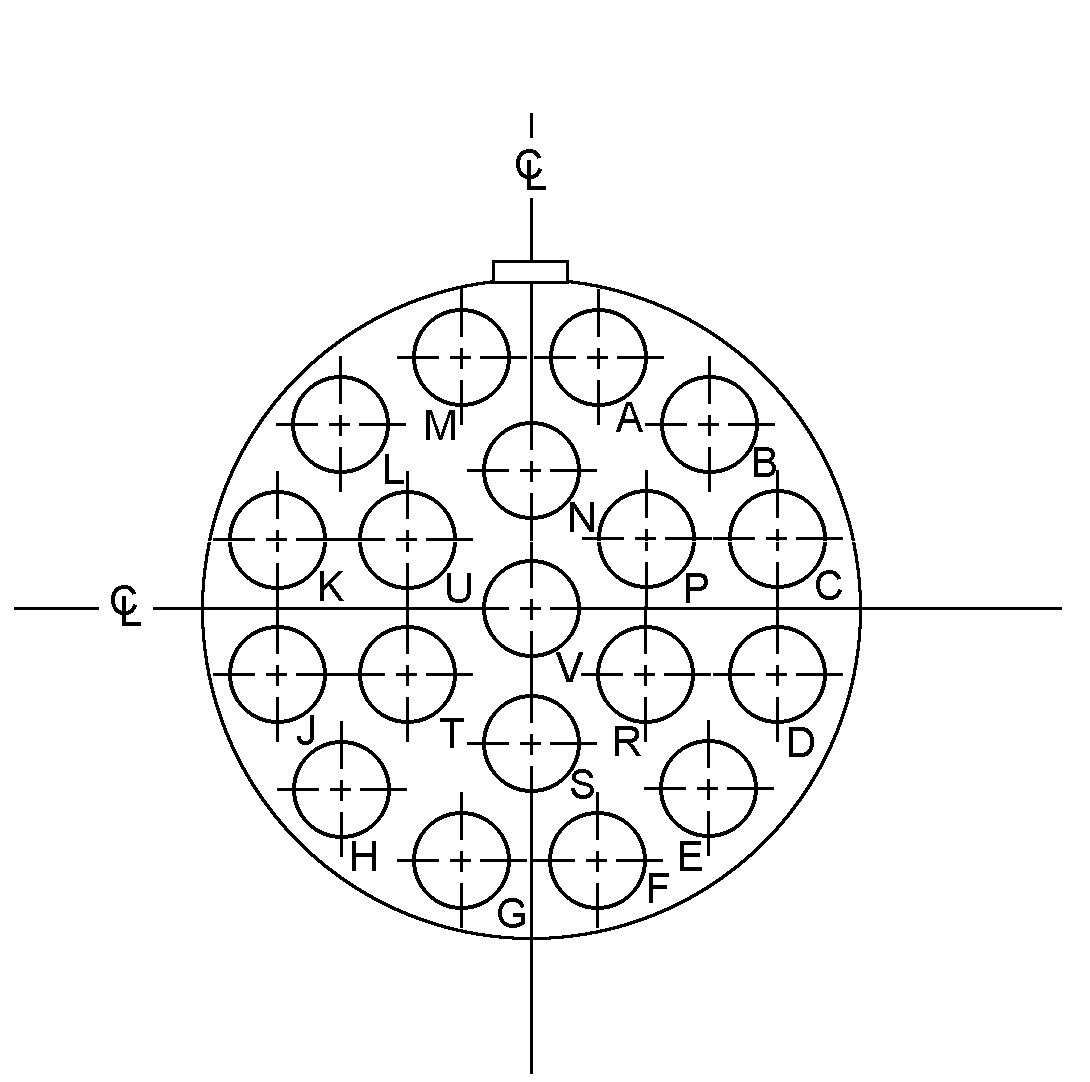

FIGuRE 9. Shell size 22 - Continued.
45
