MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (.000) |
+.368 (9.35) |
B |
+.224 (5.69) |
+.292 (7.42) |
C |
+.356 (9.04) |
+.095 (2.41) |
D |
+.341 (8.66) |
-.142 (3.61) |
E |
+.182 (4.62) |
-.319 (8.10) |
F |
.000 (.000) |
-.368 (9.35) |
G |
-.182 (4.62) |
-.319 (8.10) |
H |
-.341 (8.66) |
-.142 (3.61) |
J |
-.356 (9.04) |
+.095 (2.41) |
K |
-.224 (5.69) |
+.292 (7.42) |
L |
+.120 (3.05) |
+.079 (2.01) |
Shell Arrangeme size number |
t Number of contacts |
Size Serv contacts rati |
ice ng |
Contact location |
Supersedes document |
|||
20 90 |
3 |
F, M, p Remainder |
MS33714-90 |
|||||
12 |
||||||||

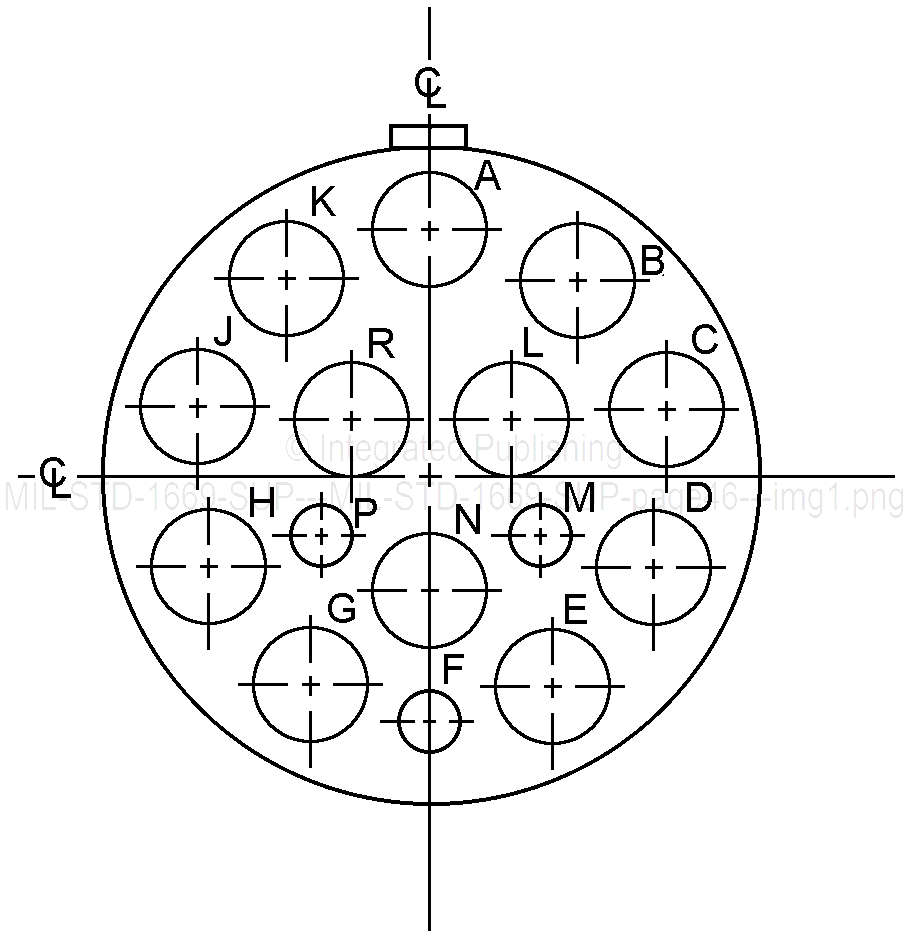

FIGURE 8. Shell size 20 - Continued.
43
