MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (0.00) |
+.398 (10.11) |
B |
+.256 (6.50) |
+.305 (7.75) |
C |
+.392 (9.97) |
+.069 (1.73) |
D |
+.345 (8.76) |
-.199 (5.06) |
E |
+.136 (3.45) |
-.374 (9.50) |
F |
-.136 (3.45) |
-.374 (9.50) |
G |
-.345 (8.76) |
-.199 (5.06) |
H |
-.392 (9.97) |
+.069 (1.73) |
J |
-.256 (6.50) |
+.305 (7.75) |
K |
+.131 (3.33) |
+.075 (1.90) |
L |
.000 (0.00) |
-.151 (3.83) |
M |
-.131 (3.33) |
+.075 (1.90) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
22 |
12 |
12 |
12 |
I |
All |
MS33715-12 |

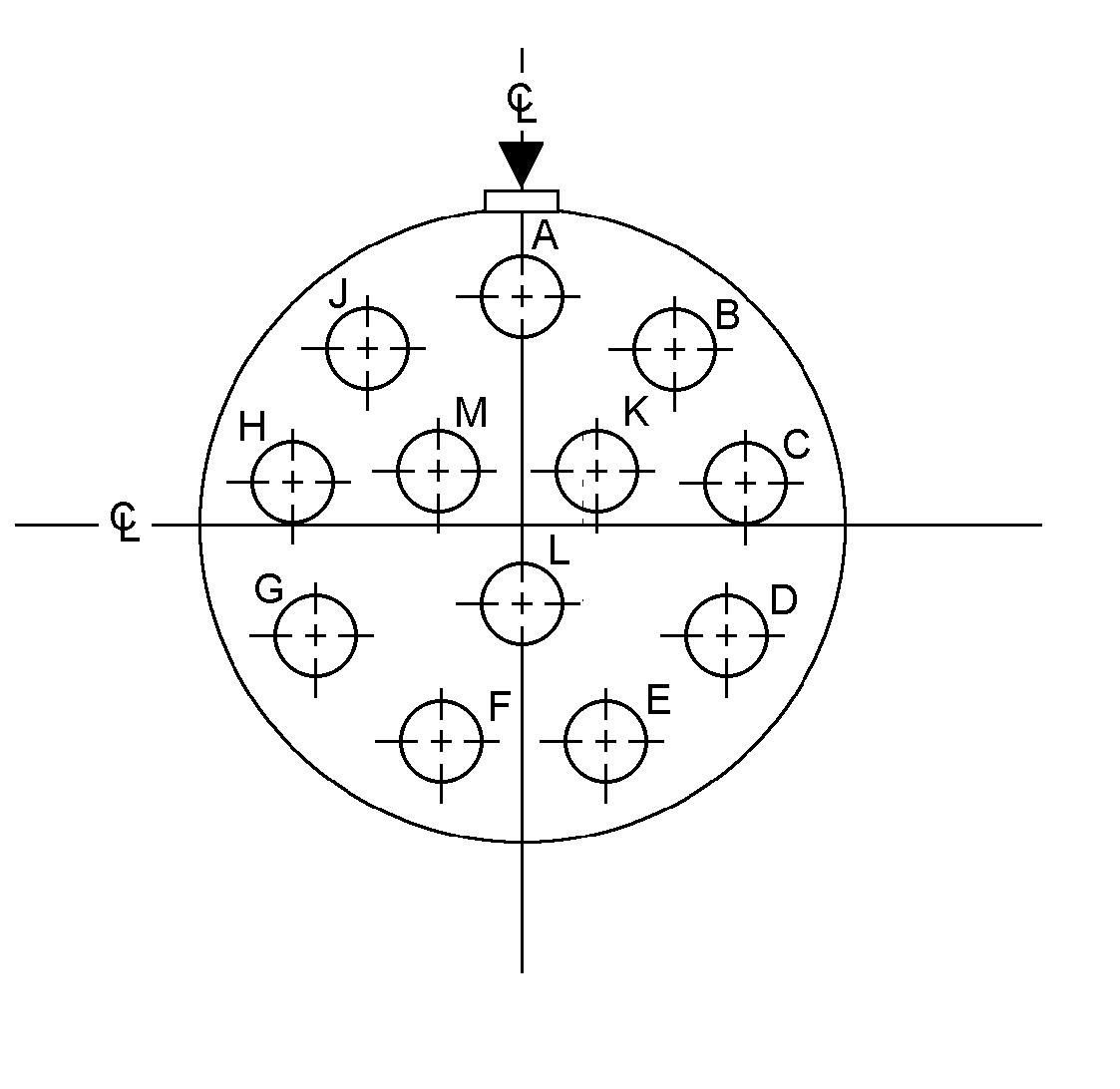

FIGURE 9. Shell size 22.
44
