MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
-.056 (1.42) |
+.056 (1.42) |
B |
-.056 (1.42) |
-.056 (1.42) |
C |
+.056 (1.42) |
-.056 (1.42) |
D |
+.056 (1.42) |
+.056 (1.42) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
8 |
4 |
4 |
20 |
I |
All |
MS33708-4 |
NOTE: Inactive for new design after 1 November 1965

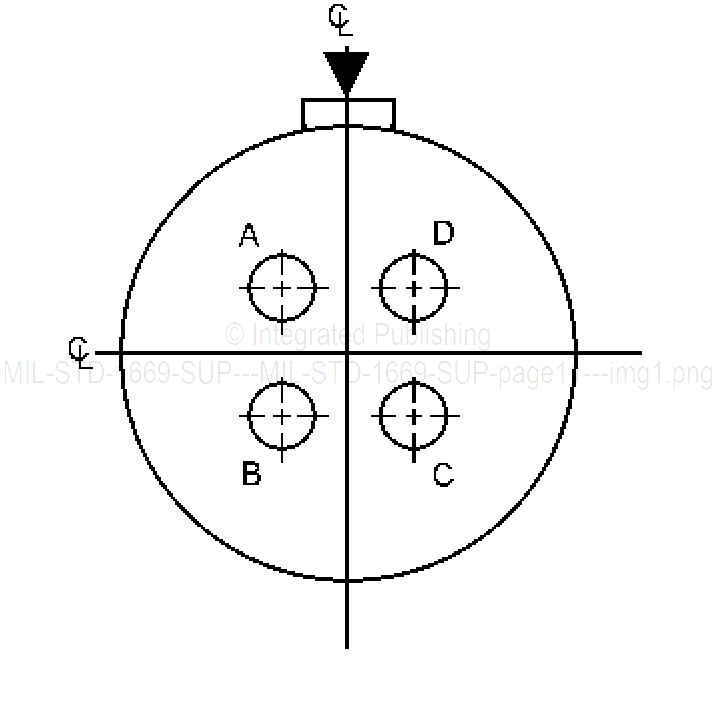

FIGURE 2. Shell size 8 - Continued.
