MIL-STD-1669A



Contacts

Contact position

Contact location

x-axis

(mm)

y-axis

(mm)

A

.000  (0.00)

+.169 (4.29)

B

+.169 (4.29)

.000  (0.00)

C

.000  (0.00)

-.169 (4.29)

D

-.169 (4.29)

.000  (0.00)


Shell size

Arrangement number

Number of contacts

Size contacts

Service rating

Contact location

Supersedes document

14

4

4

12 Power

I

All

MS33711-4

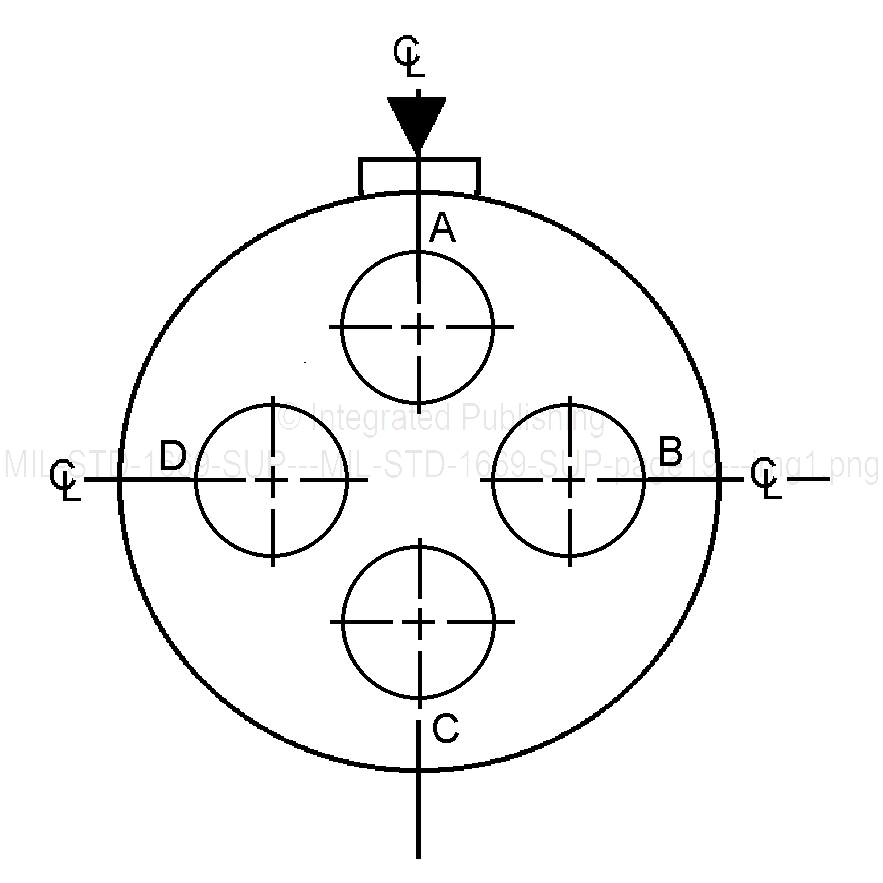

FIGURE 5. Shell size 14.


16
