MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (.000) |
+.305 (7.75) |
B |
+.215 (5.46) |
+.215 (5.46) |
C |
+.305 (7.75) |
.000 (.000) |
D |
+.215 (5.46) |
-.214 (5.44) |
E |
.000 (.000) |
-.300 (7.62) |
F |
-.215 (5.46) |
-.214 (5.44) |
G |
-.305 (7.75) |
.000 (.000) |
H |
-.215 (5.46) |
+.215 (5.46) |
J |
.000 (.000) |
+.122 (3.10) |
K |
+.126 (3.20) |
+.059 (1.50) |
L |
+.078 (1.98) |
-.079 (2.01) |
M |
-.078 (1.98) |
-.079 (2.01) |
N |
-.126 (3.20) |
+.059 (1.50) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
85 |
5 |
20 |
I |
J, K, L, M, N |
MS33713-85 |
8 |
12 |
Remainder |

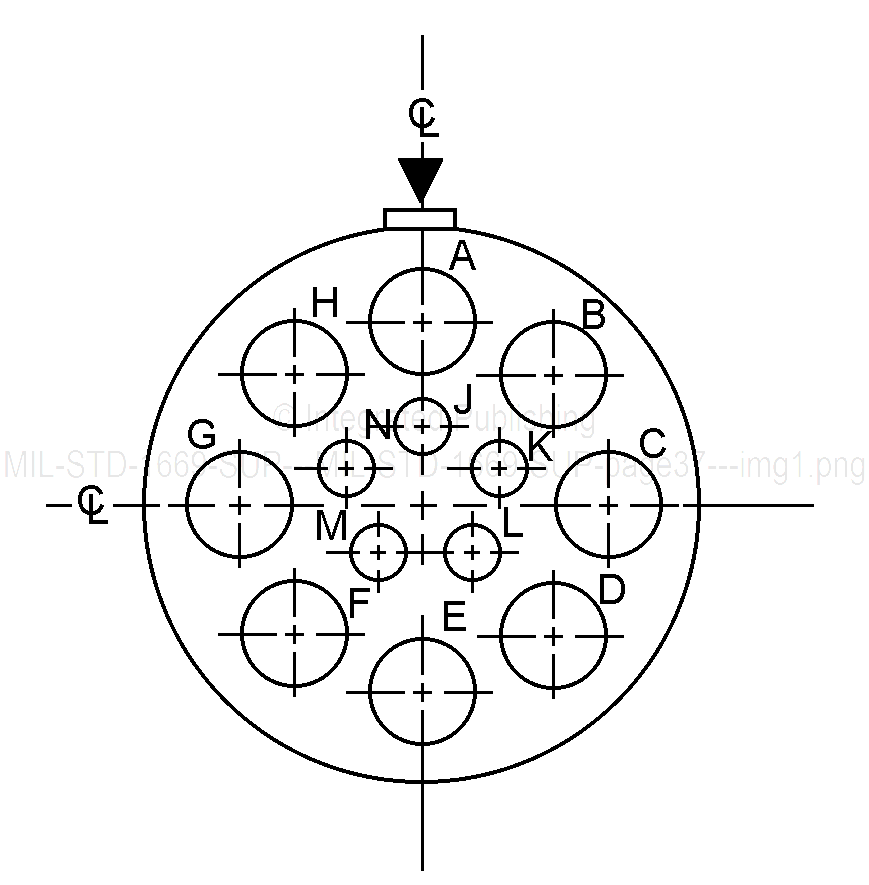

FIGURE 7. Shell size 18 - Continued.
34
