MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.321 (8.15) |
B |
+.131 (3.33) |
+.293 (7.44) |
C |
+.239 (6.07) |
+.214 (5.44) |
D |
+.305 (7.75) |
+.099 (2.51) |
E |
+.319 (8.10) |
-.034 (0.86) |
F |
+.278 (7.06) |
-.161 (4.09) |
G |
+.189 (4.80) |
-.260 (6.60) |
H |
+.067 (1.70) |
-.314 (7.98) |
J |
-.067 (1.70) |
-.314 (7.98) |
K |
-.189 (4.80) |
-.260 (6.60) |
L |
-.278 (7.06) |
-.161 (4.09) |
M |
-.319 (8.10) |
-.034 (0.86) |
N |
-.305 (7.75) |
+.099 (2.51) |
p |
-.239 (6.07) |
+.214 (5.44) |
Shell Arrangeme size number |
t Number of contacts |
Size contacts S r |
ervice ating |
Contact location |
Supersedes document |
|||
16 99 |
2 |
I |
w, z Remainder |
MS33712-99 |
||||
21 |
||||||||

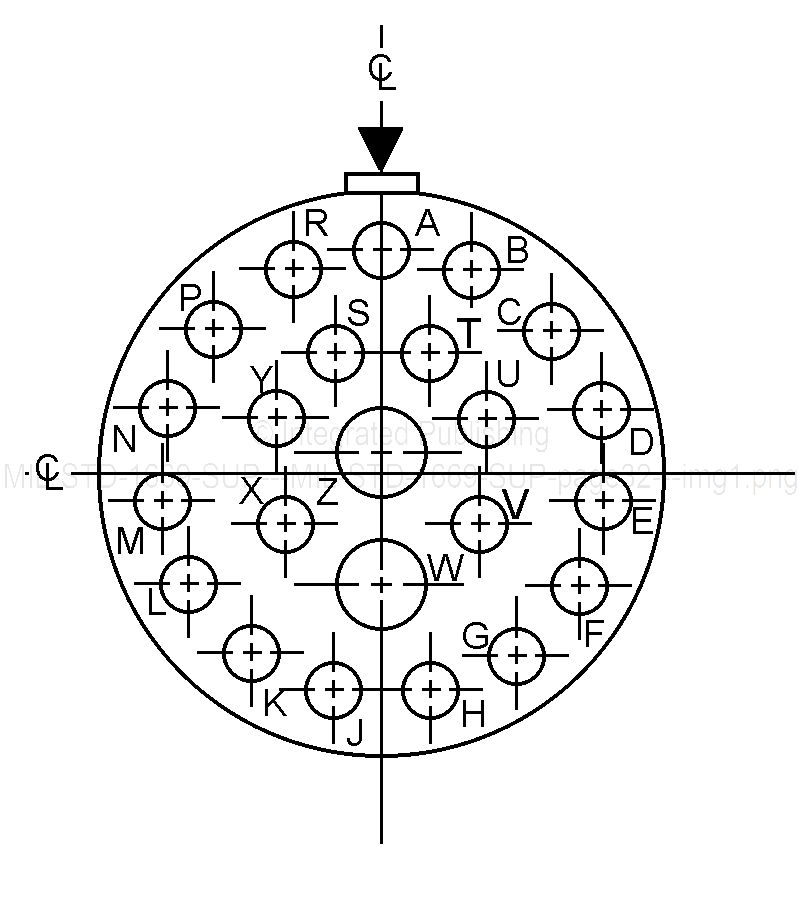

FIGuRE 6. Shell size 16 - Continued.
29
