MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
+.065 (1.65) |
+.243 (6.17) |
B |
+.178 (4.52) |
+.178 (4.52) |
C |
+.178 (4.52) |
-.178 (4.52) |
D |
+.065 (1.65) |
-.243 (6.17) |
E |
-.065 (1.65) |
-.243 (6.17) |
F |
-.178 (4.52) |
-.178 (4.52) |
G |
-.178 (4.52) |
+.178 (4.52) |
H |
-.065 (1.65) |
+.243 (6.17) |
J |
.000 (0.00) |
+.094 (2.39) |
K |
+.162 (4.11) |
.000 (0.00) |
L |
.000 (0.00) |
-.094 (2.39) |
M |
-.162 (4.11) |
.000 (0.00) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
14 |
12 |
4 |
16 |
I |
J, K, L, M |
MS33711-12 |
8 |
20 |
Remainder |

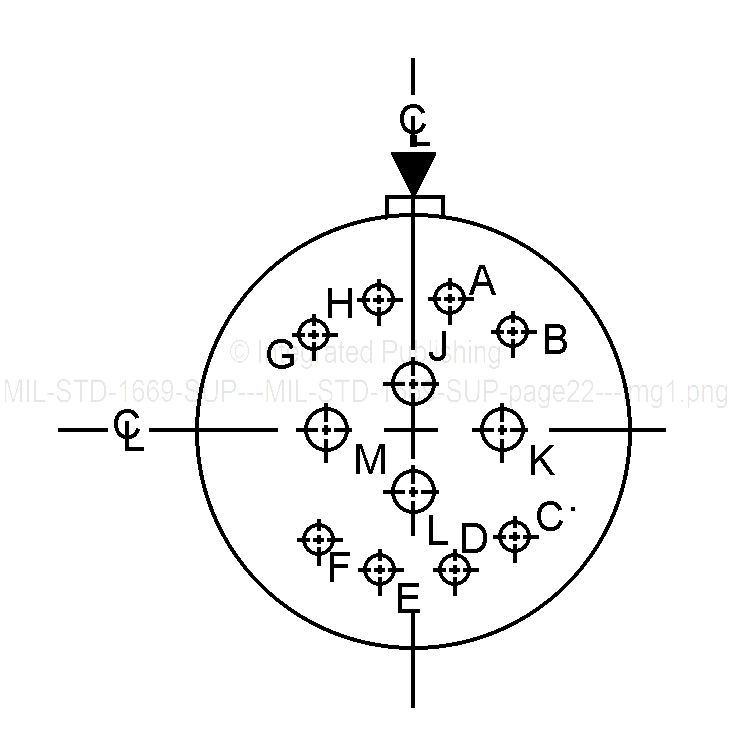

FIGURE 5. Shell size 14 - Continued.
