MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.066 (1.68) |
+.353 (8.97) |
B |
+.189 (4.80) |
+.305 (7.75) |
C |
+.286 (7.26) |
+.217 (5.51) |
D |
+.345 (8.76) |
+.098 (2.49) |
E |
+.357 (9.07) |
-.033 (0.84) |
F |
+.321 (8.15) |
-.160 (4.06) |
G |
+.242 (6.15) |
-.265 (6.73) |
H |
+.130 (3.30) |
-.335 (8.51) |
J |
.000 (0.00) |
-.359 (9.12) |
K |
-.130 (3.30) |
-.335 (8.51) |
L |
-.242 (6.15) |
-.265 (6.73) |
M |
-.321 (8.15) |
-.160 (4.06) |
N |
-.357 (9.07) |
-.033 (0.84) |
p |
-.345 (8.76) |
+.098 (2.49) |
R |
-.286 (7.26) |
+.217 (5.51) |
S |
-.189 (4.80) |
+.305 (7.75) |
T |
-.066 (1.68) |
+.353 (8.97) |
u |
.000 (0.00) |
+.230 (5.84) |
v |
+.124 (3.15) |
+.193 (4.90) |
Shell size |
Arrangement Number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
32 |
32 |
20 |
I |
All |
MS33713-32 |

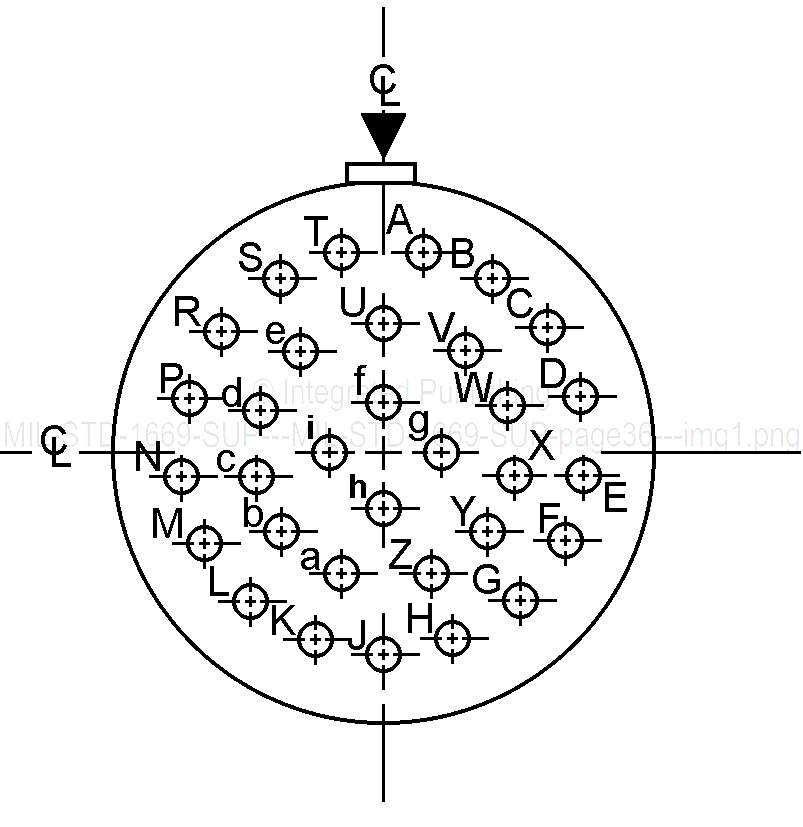

FIGuRE 7. Shell size 18 - Continued.
33
