MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (.000) |
+.350 (8.89) |
B |
+.175 (4.44) |
+.175 (4.44) |
C |
+.350 (8.89) |
.000 (.000) |
D |
+.175 (4.44) |
-.175 (4.44) |
E |
-.175 (4.44) |
-.175 (4.44) |
F |
-.350 (8.89) |
.000 (.000) |
G |
-.175 (4.44) |
+.175 (4.44) |
H |
.000 (.000) |
.000 (.000) |
Shell size
Arrangement number
Number of contacts
Size contacts
Service rating
Contact location
Supersedes document
18 88
4 20 I
4 8 Shielded.
Not applicable to series 2 (rear
release connectors).
A, C, F, H B, D, E, G
MS33713-88

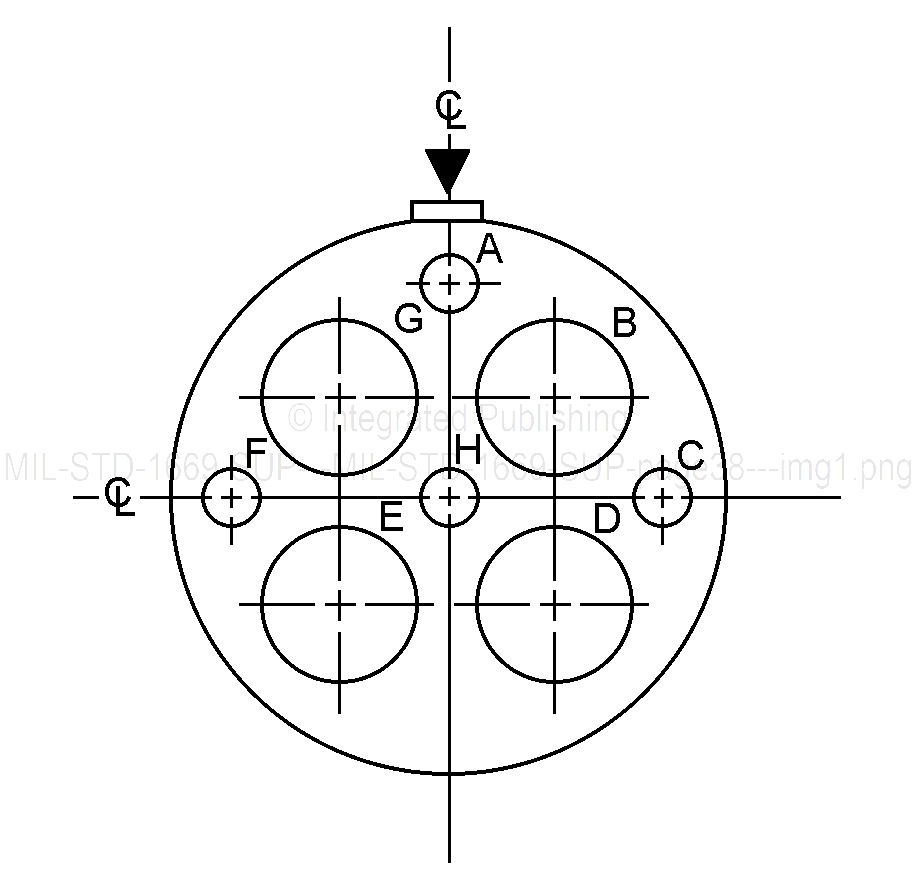

FIGURE 7. Shell size 18 - Continued.
35
