MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.175 (4.44) |
+.375 (9.52) |
B |
+.350 (8.89) |
+.200 (5.08) |
C |
+.400 (10.18) |
.000 (.000) |
D |
+.350 (8.89) |
-.200 (5.08) |
E |
+.200 (5.08) |
-.350 (8.89) |
F |
.000 (.000) |
-.400 (10.16) |
G |
-.200 (5.08) |
-.350 (8.89) |
H |
-.350 (8.89) |
-.200 (5.08) |
J |
-.400 (10.18) |
.000 (.000) |
K |
-.350 (8.89) |
+.200 (5.08) |
L |
-.175 (4.44) |
+.375 (9.52) |
M |
.000 (.000) |
+.300 (7.62) |
N |
+.150 (3.81) |
+.200 (5.08) |
p |
+.250 (6.35) |
.000 (.000) |
R |
+.200 (5.08) |
-.150 (3.81) |
Shell size |
Arrangement No. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
24 |
24 |
20 |
I |
All |
MS33714-24 MS27731-24 |

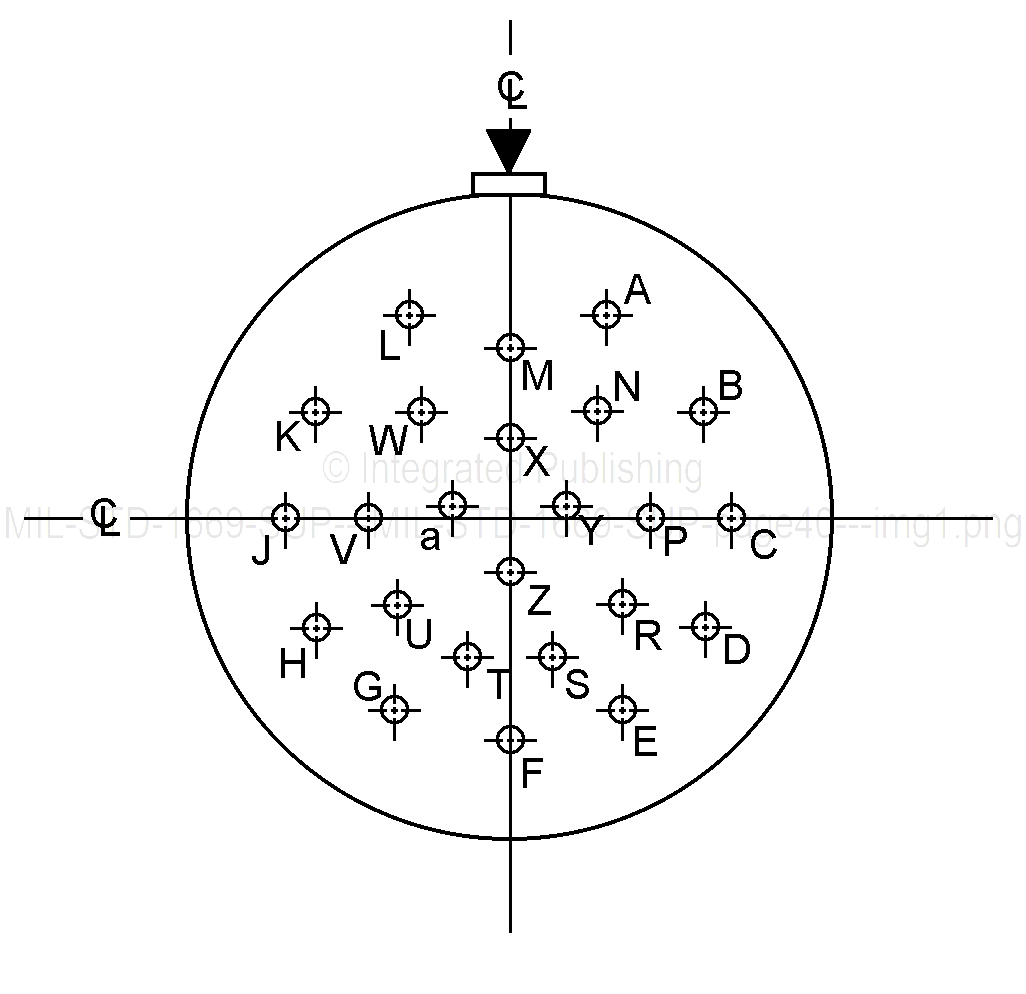

FIGuRE 8. Shell size 20 - Continued.
37
