MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (.000) |
+.400 (10.16) |
B |
+.150 (3.81) |
+.375 (9.53) |
C |
+.275 (6.99) |
+.275 (6.99) |
D |
+.375 (9.53) |
+.150 (3.81) |
E |
+.400 (10.16) |
.000 (.000) |
F |
+.375 (9.53) |
-.150 (3.81) |
G |
+.275 (6.99) |
-.300 (7.62) |
H |
+.100 (2.54) |
-.400 (10.16) |
J |
-.100 (2.54) |
-.400 (10.16) |
K |
-.275 (6.99) |
-.300 (7.62) |
L |
-.375 (9.53) |
-.150 (3.81) |
M |
-.400 (10.16) |
.000 (.000) |
N |
-.375 (9.53) |
+.150 (3.81) |
p |
-.275 (6.99) |
+.275 (6.99) |
R |
-.150 (3.81) |
+.375 (9.53) |
S |
+.125 (3.18) |
+.225 (5.71) |
T |
+.225 (5.71) |
-.100 (2.54) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
27 |
27 |
20 |
I |
All |
MS33714-27 MS27731-27 |

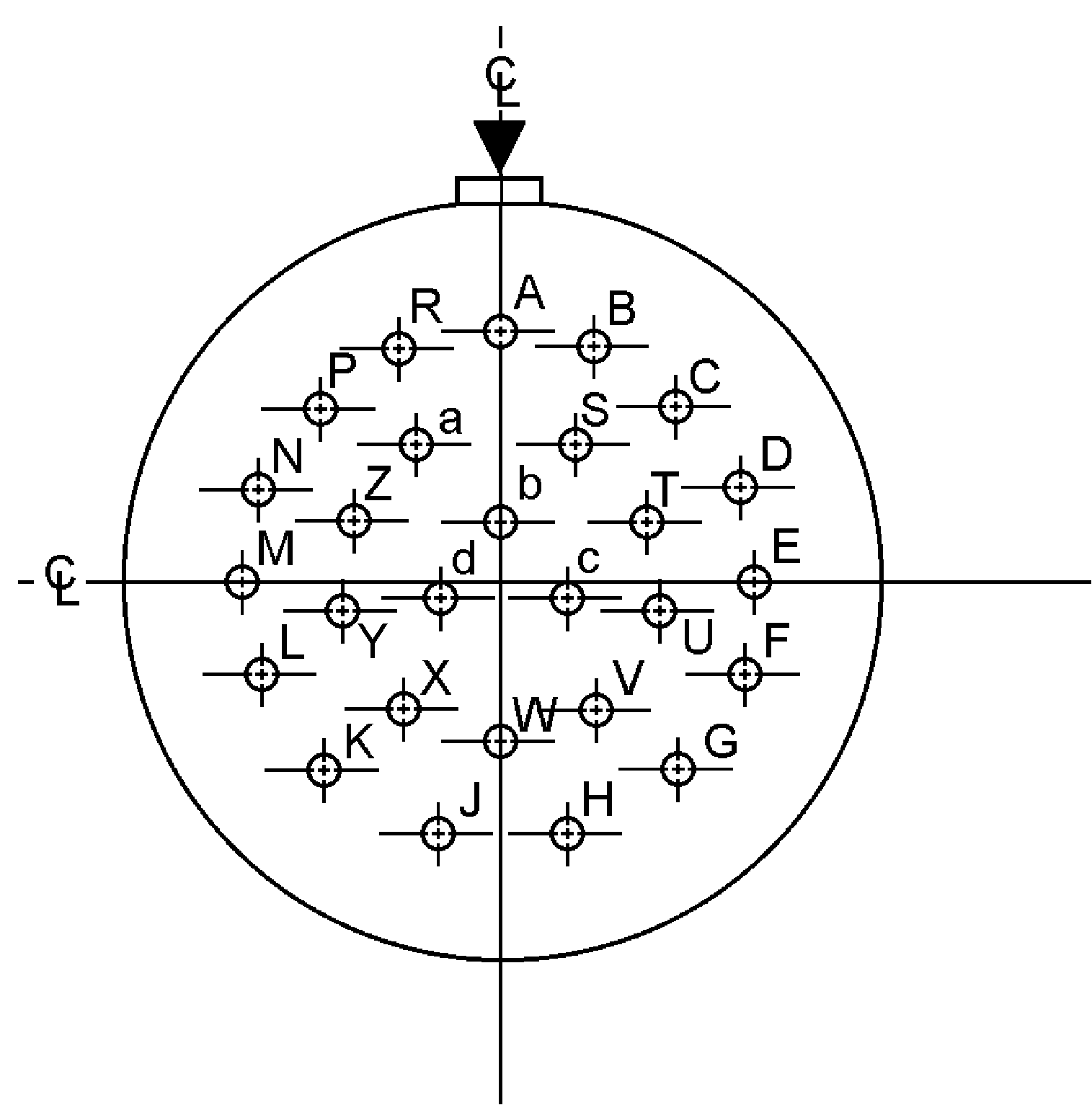

FIGuRE 8. Shell size 20 - Continued.
38
