MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (0.00) |
+.360 (9.44) |
B |
+.312 (7.92) |
+.180 (4.57) |
C |
+.312 (7.92) |
-.180 (4.57) |
D |
.000 (0.00) |
-.360 (9.44) |
E |
-.312 (7.92) |
-.180 (4.57) |
F |
-.312 (7.92) |
+.180 (4.57) |
G |
.000 (0.00) |
.000 (0.00) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
22 |
96 |
7 |
8 Shielded. Not applicable to series 2 (rear release connectors) |
I |
All |
MS33715-96 |

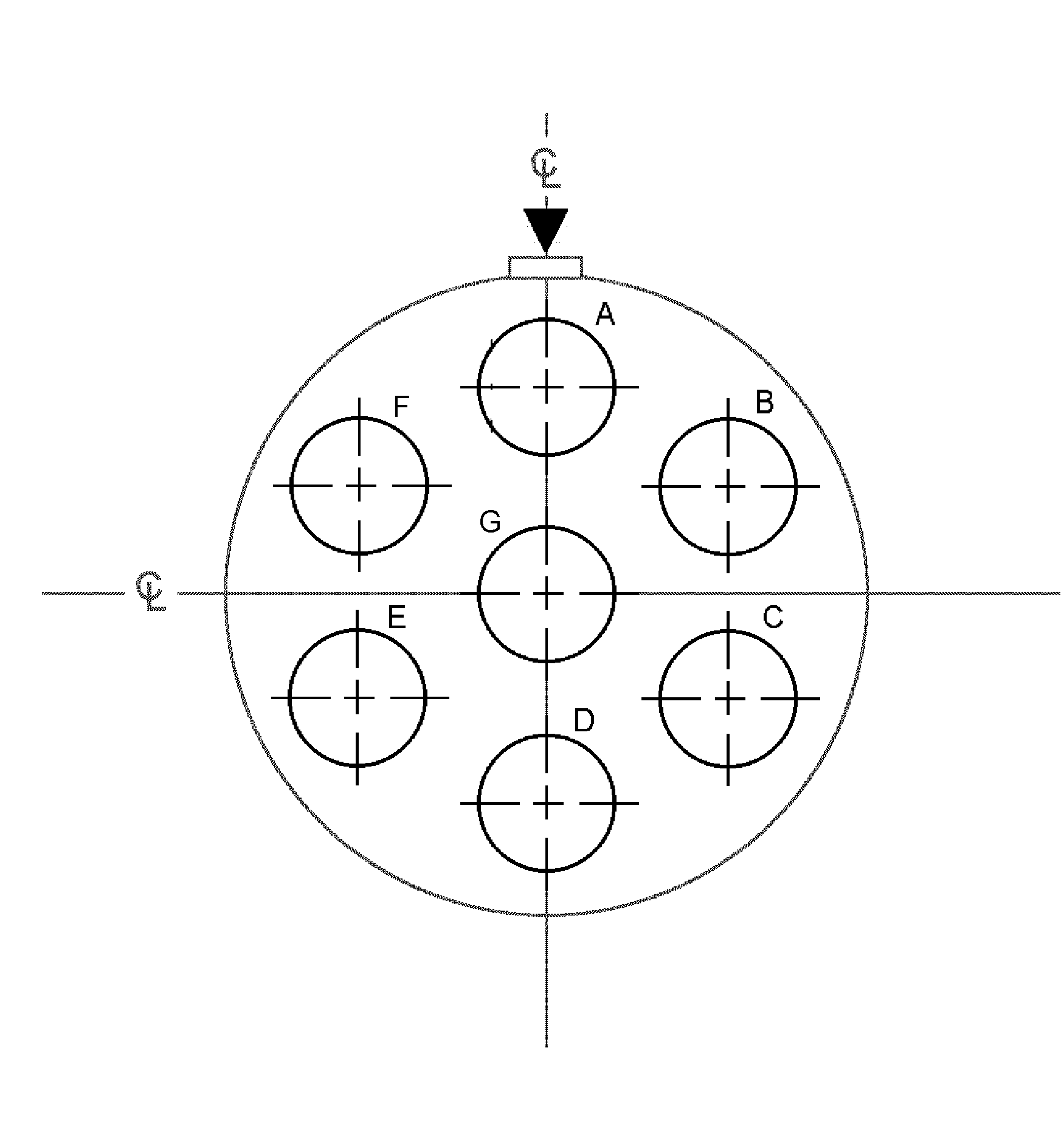

FIGURE 9. Shell size 22 - Continued.
56
