MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (0.00) |
+.268 (6.81) |
B |
+.178 (4.52) |
+.266 (6.76) |
C |
+.268 (6.81) |
+.173 (4.39) |
D |
+.268 (6.81) |
-.005 (.130) |
E |
+.165 (4.19) |
-.212 (5.38) |
F |
.000 (0.00) |
-.320 (8.13) |
G |
-.165 (4.19) |
-.212 (5.38) |
H |
-.268 (6.81) |
-.005 (.130) |
J |
-.268 (6.81) |
+.173 (4.39) |
K |
-.178 (4.52) |
+.266 (6.76) |
L |
+.142 (3.61) |
+.139 (3.53) |
M |
.000 (0.00) |
-.146 (3.71) |
N |
-.142 (3.61) |
+.139 (3.53) |
p |
.000 (0.00) |
+.032 (0.81) |
Shell Arrangeme size number |
nt Number o contacts |
f Size Service contacts rating |
Contact location |
Supersedes document |
|||
16 14 |
8 |
20 I 12 |
B, C, F, J, K, L, M, N A, D, E, G, H, p |
MS33712-14 |
|||
6 |
|||||||

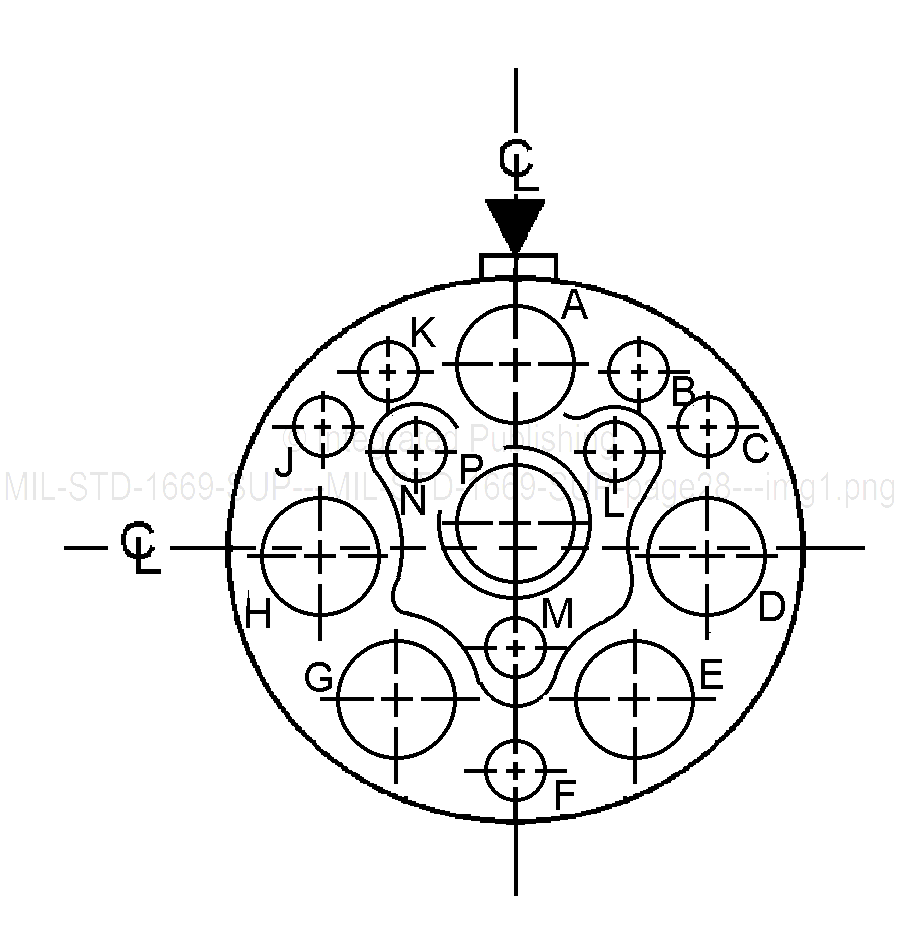

FIGURE 6. Shell size 16 - Continued.
25
