MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (.000) |
+.491 (12.47) |
B |
+.246 (6.25) |
+.425 (10.80) |
C |
+.425 (10.80) |
+.246 (6.25) |
D |
+.491 (12.47) |
.000 (.000) |
E |
+.425 (10.80) |
-.246 (6.25) |
F |
+.246 (6.25) |
-.425 (10.80) |
G |
.000 (.000) |
-.491 (12.47) |
H |
-.246 (6.25) |
-.425 (10.80) |
J |
-.425 (10.80) |
-.246 (6.25) |
K |
-.491 (12.47) |
.000 (.000) |
L |
-.425 (10.80) |
+.246 (6.25) |
M |
-.246 (6.25) |
+.425 (10.80) |
N |
.000 (.000) |
+.255 (6.48( |
p |
+.184 (4.67) |
+.239 (6.07) |
R |
+.270 (6.86) |
+.130 (3.30) |
S |
+.301 (7.64) |
.000 (.000) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
24 |
27 |
11 |
20 |
I |
p, R, S, w, X, Y, z, a, b, c, d |
MS33716-27 |
16 |
12 |
Remainder |

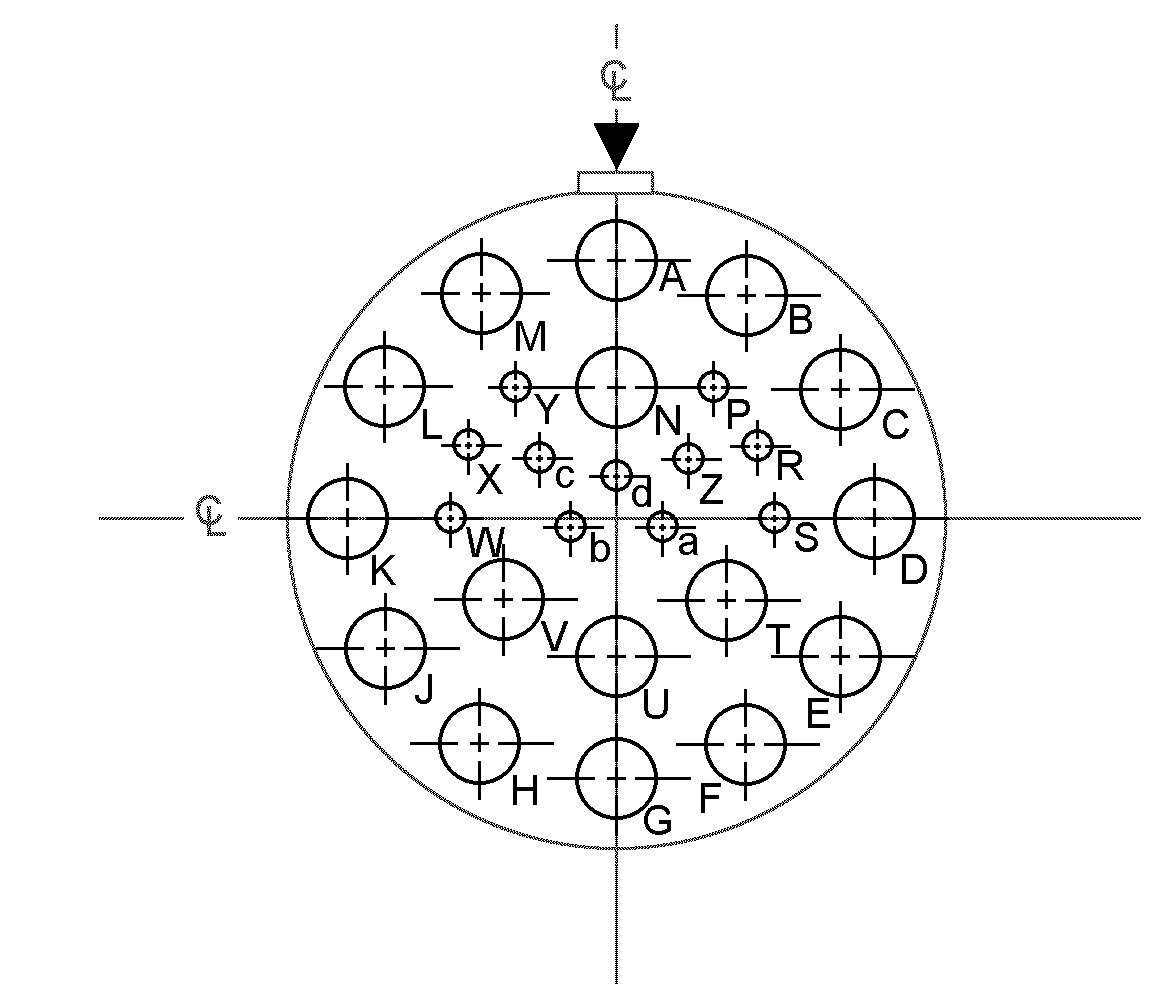

FIGuRE 10. Shell size 24 - Continued.
58
