MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (0.00) |
+.280 (7.11) |
B |
+.219 (5.56) |
+.175 (4.45) |
C |
+.273 (6.93) |
-.062 (1.57) |
D |
+.121 (3.07) |
-.252 (6.40) |
E |
-.121 (3.07) |
-.252 (6.40) |
F |
-.273 (6.93) |
-.062 (1.57) |
G |
-.219 (5.56) |
+.175 (4.45) |
H |
.000 (0.00) |
.000 (0.00) |
Shell size |
Arrangement No. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
8 |
8 |
12 |
I |
All |
MS33713-8 MS27730-8 |

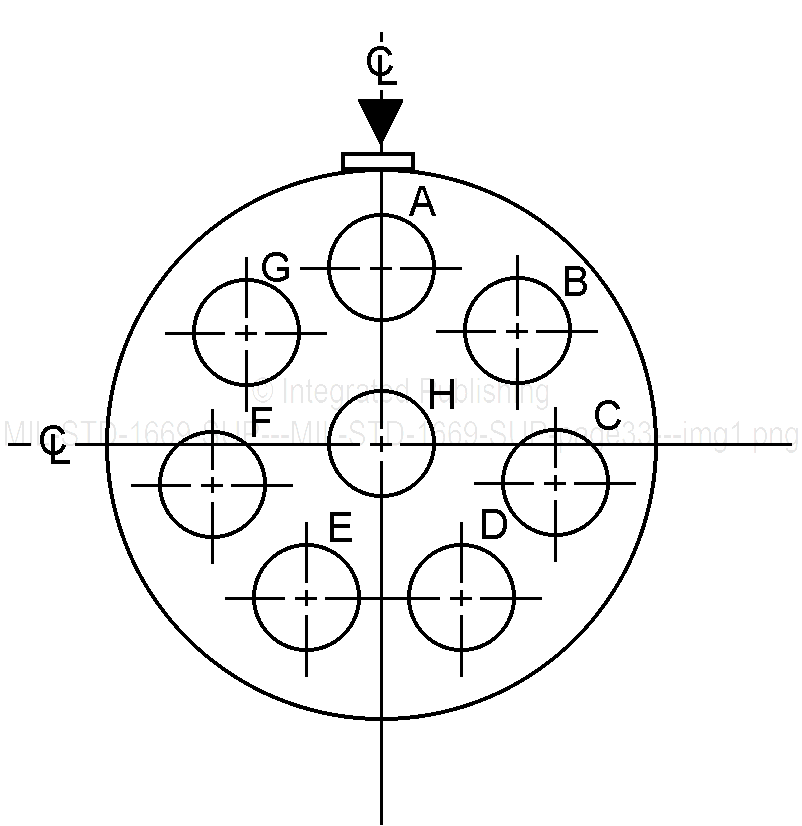

FIGURE 7. Shell size 18.
30
