MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
x-axis (mm) |
y-axis (mm) |
|
A |
.000 (0.00) |
+.162 (4.11) |
B |
+.115 (2.92) |
+.261 (6.83) |
C |
+.200 (5.08) |
.000 (0.00) |
D |
+.143 (3.63) |
-.250 (6.35) |
E |
.000 (0.00) |
-.162 (.411) |
F |
-.143 (3.63) |
-.250 (6.35) |
G |
-.200 (5.08) |
.000 (0.00) |
H |
-.115 (2.92) |
+.261 (6.83) |
Shell Arrangeme size number |
nt Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
|||
16 95 |
6 |
I |
A, B, D, E, F, H C, G |
MS33712-95 |
||||
8 s 2 N se rel |
||||||||

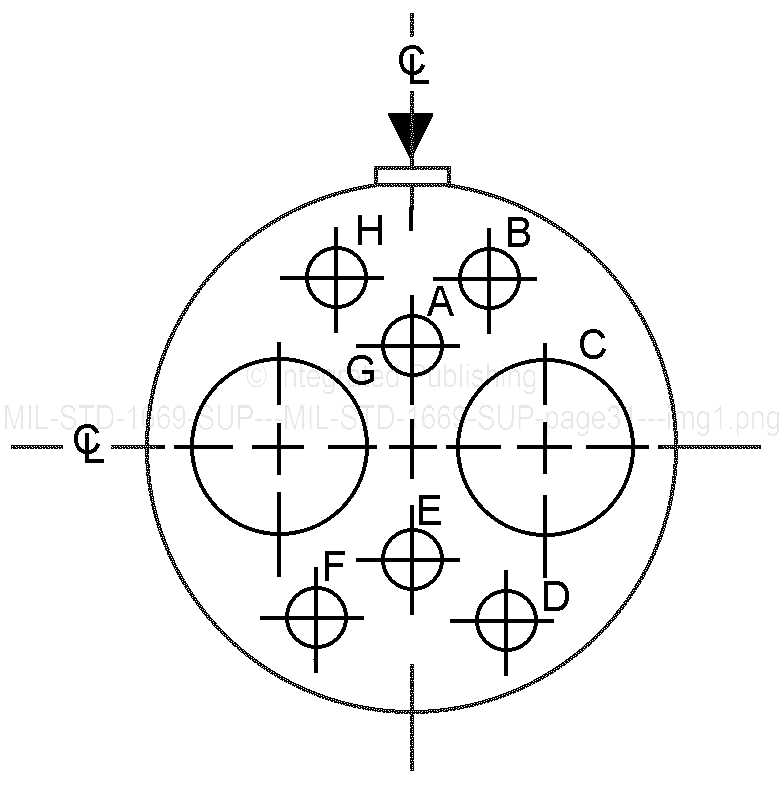

FIGURE 6. Shell size 16 - Continued.
28
