MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.059 (1.50) |
.000 (0.00) |
B |
-.059 (1.50) |
.000 (0.00) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
8 |
2 |
2 |
20 |
I |
All |
MS33708-2 |
NOTE: Inactive for new design after 11 August 1967.

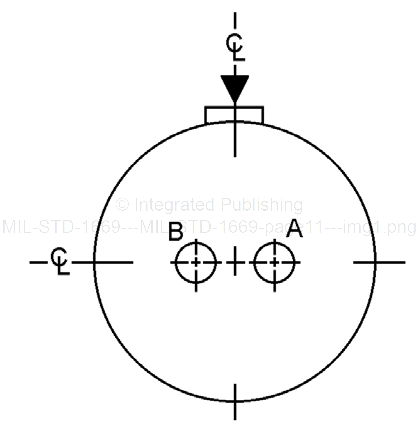

FIGURE 2. Shell size 8.
