MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
v |
+.228 (5.79) |
+.008 (0.20) |
w |
+.193 (4.90) |
-.117 (2.97) |
X |
+.096 (2.44) |
-.203 (5.16) |
Y |
.000 (0.00) |
-.290 (7.37) |
z |
-.096 (2.44) |
-.203 (5.16) |
a |
-.193 (4.90) |
-.117 (2.97) |
b |
-.228 (5.79) |
+.008 (0.20) |
c |
-.181 (4.60) |
+.129 (3.28) |
d |
-.084 (2.13) |
+.217 (5.51) |
e |
.000 (0.00) |
+.072 (1.83) |
f |
+.069 (1.75) |
-.076 (1.93) |
g |
-.069 (1.75) |
-.076 (1.93) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
180 |
193 |
285 |
350 |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
30 |
1 |
16 |
I |
e |
MS33713-30 MS27730-30 |
29 |
20 |
Remainder |

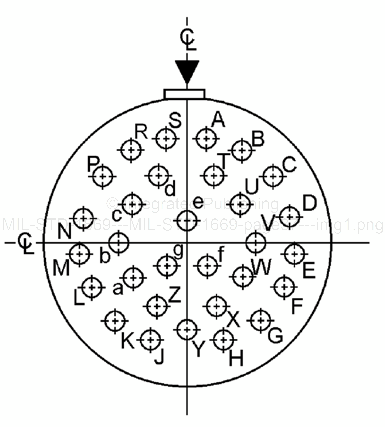

FIGuRE 7. Shell size 18 - Continued.
