MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
T |
+.178 (4.52) |
.000 (0.00) |
u |
+.126 (3.20) |
-.126 (3.20) |
v |
.000 (0.00) |
-.178 (4.52) |
w |
-.126 (3.20) |
-.126 (3.20) |
X |
-.178 (4.52) |
.000 (0.00) |
Y |
-.126 (3.20) |
+.126 (3.20) |
z |
.000 (0.00) |
.000 (0.00) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
158 |
270 |
----- |
----- |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
16 |
23 |
1 |
16 |
I |
z |
MS33712-23 |
22 |
20 |
Remainder |
MS33729-23 |

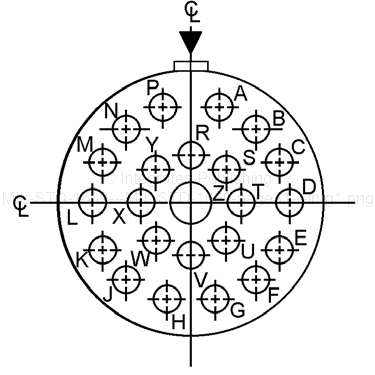

FIGuRE 6. Shell size 16 - Continued.
26
