MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
w |
.000 (.000) |
-.300 (7.62) |
X |
-.200 (5.08) |
-.250 (6.35) |
Y |
-.300 (7.62) |
-.125 (3.18) |
z |
-.325 (8.25) |
+.025 (0.63) |
a |
-.250 (6.35) |
+.175 (4.44) |
b |
-.150 (3.81) |
+.300 (7.62) |
c |
+.100 (2.54) |
+.150 (3.81) |
d |
+.150 (3.81) |
.000 (.000) |
e |
+.075 (1.90) |
-.150 (3.81) |
f |
-.075 (1.90) |
-.150 (3.81) |
g |
-.150 (3.81) |
.000 (.000) |
h |
-.100 (2.54) |
+.150 (3.81) |
j |
.000 (.000) |
.000 (.000) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
72 |
145 |
215 |
288 |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
22 |
32 |
32 |
20 |
I |
All |
MS33715-32 MS27732-32 MS33715-18 |

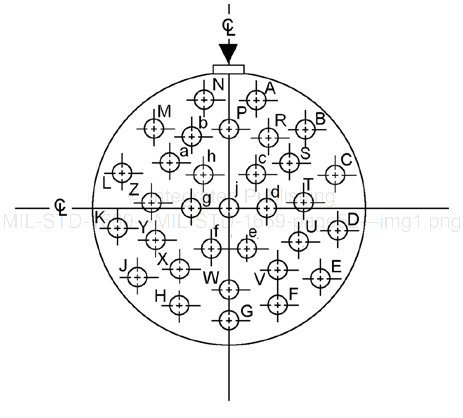

FIGuRE 9. Shell size 22 - Continued.
47
