MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
S |
+.075 (1.90) |
-.250 (6.35) |
T |
-.075 (1.90) |
-.250 (6.35) |
u |
-.200 (5.08) |
-.150 (3.81) |
v |
-.250 (6.35) |
.000 (.000) |
w |
-.150 (3.81) |
+.200 (5.08) |
X |
.000 (.000) |
+.150 (3.81) |
Y |
+.100 (2.54) |
+.025 (0.63) |
z |
.000 (.000) |
-.100 (2.54) |
a |
-.100 (2.54) |
+.025 (0.63) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
70 |
145 |
215 |
290 |
Shell size |
Arrangement No. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
24 |
24 |
20 |
I |
All |
MS33714-24 MS27731-24 |

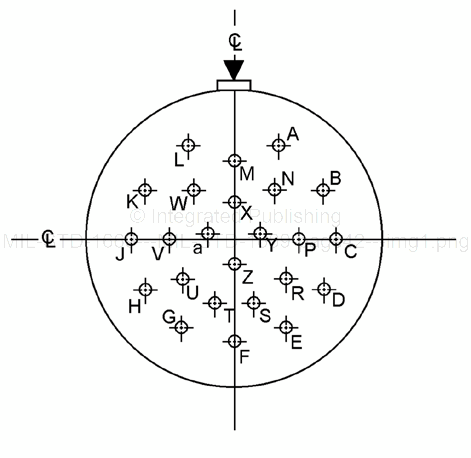

FIGuRE 8. Shell size 20 - Continued.
37
