MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.120 (3.05) |
B |
+.130 (3.30) |
+.120 (3.05) |
C |
+.195 (4.95) |
.000 (0.00) |
D |
+.130 (3.30) |
-.120 (3.05) |
E |
.000 (0.00) |
-.120 (3.05) |
F |
-.130 (3.30) |
-.120 (3.05) |
G |
-.195 (4.95) |
.000 (0.00) |
H |
-.130 (3.30) |
+.120 (3.05) |
J |
+.065 (1.65) |
.000 (0.00) |
K |
-.065 (1.65) |
.000 (0.00) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
12 |
10 |
10 |
20 |
I |
All |
MS33710-10 |

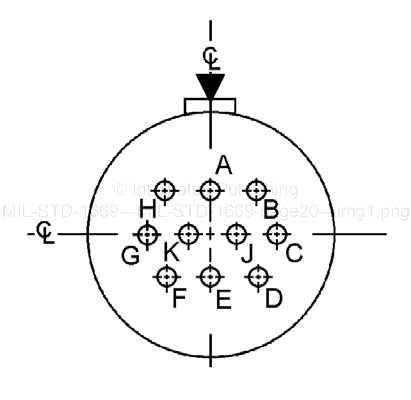

FIGURE 4. Shell size 12 - Continued.
15
