MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (.000) |
+.350 (8.89) |
B |
+.175 (4.44) |
+.175 (4.44) |
C |
+.350 (8.89) |
.000 (.000) |
D |
+.175 (4.44) |
-.175 (4.44) |
E |
-.175 (4.44) |
-.175 (4.44) |
F |
-.350 (8.89) |
.000 (.000) |
G |
-.175 (4.44) |
+.175 (4.44) |
H |
.000 (.000) |
.000 (.000) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
88 |
4 |
20 |
I |
A, C, F, H |
MS33713-88 |
4 |
8 Shielded. Not applicable to series 2 (rear release connectors). |
B, D, E, G |

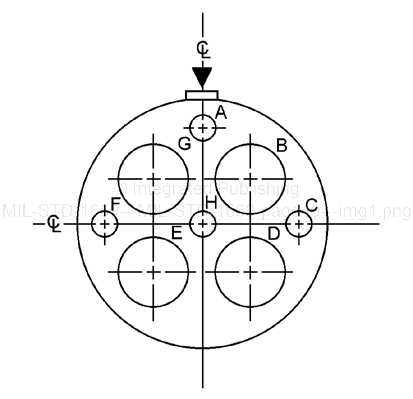

FIGURE 7. Shell size 18 - Continued.
35
