MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
M |
+.166 (4.22) |
-.098 (2.49) |
N |
.000 (.000) |
-.170 (4.32) |
p |
-.166 (4.22) |
-.098 (2.49) |
R |
-.120 (3.05) |
+.079 (2.01) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
18 |
60 |
240 |
270 |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
90 |
3 |
20 |
I |
F, M, p |
MS33714-90 |
12 |
12 |
Remainder |

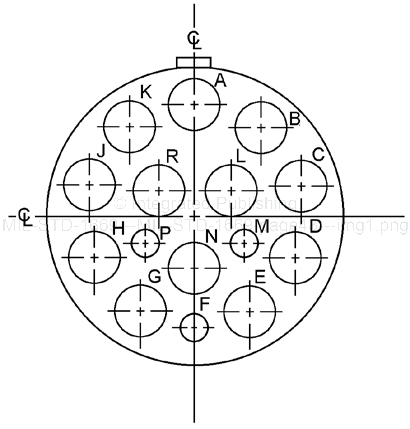

FIGURE 8. Shell size 20 - Continued.
