MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.100 (2.54) |
+.225 (5.71) |
B |
+.202 (5.13) |
+.140 (3.56) |
C |
+.244 (6.20) |
+.014 (0.36) |
D |
+.218 (5.54) |
-.113 (2.87) |
E |
+.126 (3.20) |
-.209 (5.31) |
F |
.000 (0.00) |
-.245 (6.22) |
G |
-.126 (3.20) |
-.209 (5.31) |
H |
-.218 (5.54) |
-.113 (2.87) |
J |
-.244 (6.20) |
+.014 (0.36) |
K |
-.202 (5.13) |
+.140 (3.56) |
L |
-.100 (2.54) |
+.225 (5.71) |
M |
.000 (0.00) |
+.140 (3.56) |
N |
+.110 (2.79) |
+.040 (1.02) |
p |
.000 (0.00) |
-.077 (1.96) |
R |
-.110 (2.79) |
+.040 (1.02) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
14 |
15 |
1 |
16 |
I |
p |
MS33711-15 |
14 |
20 |
Remainder |

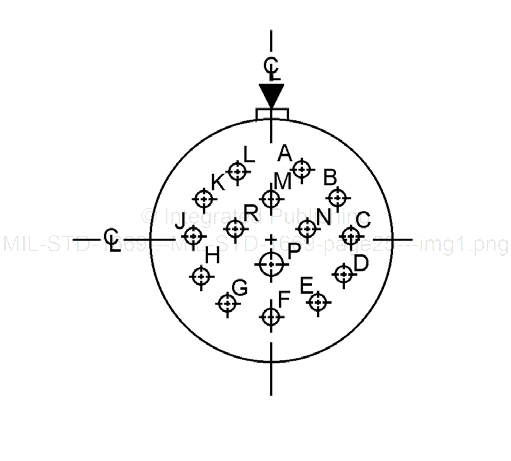

FIGURE 5. Shell size 14 - Continued.
20
