MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.236 (5.99) |
B |
+.128 (3.25) |
+.086 (2.18) |
C |
+.230 (5.60) |
-.078 (1.98) |
D |
+.094 (2.39) |
-.216 (5.49) |
E |
-.094 (2.39) |
-.216 (5.49) |
F |
-.230 (5.60) |
-.078 (1.98) |
G |
-.128 (3.25) |
+.086 (2.18) |
H |
.000 (0.00) |
-.052 (1.32) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
16 |
8 |
8 |
16 |
II |
All |
MS33712-8 |

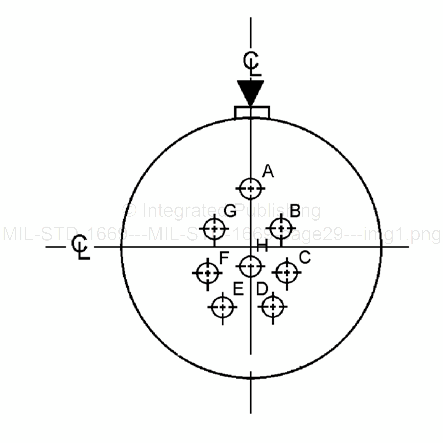

FIGURE 6. Shell size 16.
