MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
p |
+.119 (3.02) |
+.206 (5.23) |
R |
+.238 (6.04) |
.000 (.000) |
S |
+.119 (3.02) |
-.206 (5.23) |
T |
-.119 (3.02) |
-.206 (5.23) |
u |
-.238 (6.04) |
.000 (.000) |
v |
.000 (.000) |
.000 (.000) |
Al |
ternate insert positions |
|||
A degrees |
||||
w |
X |
Y |
z |
|
30 |
165 |
315 |
----- |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
24 |
19 |
19 |
12 |
II |
All |
MS33716-19 MS27733-19 |

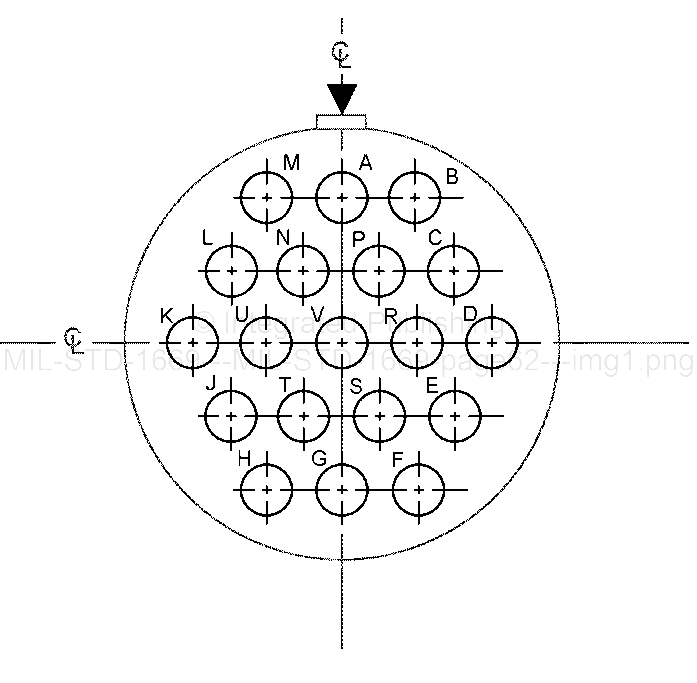

FIGuRE 10. Shell size 24.
57
