MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
u |
+.250 (6.35) |
-.050 (1.27) |
v |
+.150 (3.81) |
-.200 (5.08) |
w |
.000 (.000) |
-.250 (6.35) |
X |
-.150 (3.81) |
-.200 (5.08) |
Y |
-.250 (6.35) |
-.050 (1.27) |
z |
-.225 (5.71) |
-.100 (2.54) |
a |
-.125 (3.18) |
+.225 (5.71) |
b |
.000 (.000) |
+.100 (2.54) |
c |
+.100 (2.54) |
-.025 (0.63) |
d |
-.100 (2.54) |
-.025 (0.63) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
72 |
144 |
216 |
288 |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
27 |
27 |
20 |
I |
All |
MS33714-27 MS27731-27 |

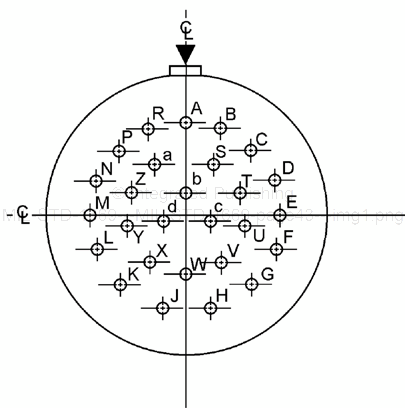

FIGuRE 8. Shell size 20 - Continued.
38
