MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.100 (2.54) |
B |
+.174 (4.42) |
+.024 (0.61) |
C |
+.094 (2.39) |
-.148 (3.76) |
D |
-.094 (2.39) |
-.148 (3.76) |
E |
-.174 (4.42) |
+.024 (0.61) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
14 |
5 |
5 |
16 |
II |
All |
MS33711-5 |

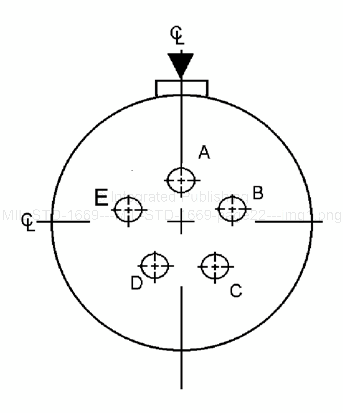

FIGURE 5. Shell size 14 - Continued.
