MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
u |
.000 (.000) |
-.364 (9.25) |
v |
-.158 (4.01) |
-.273 (6.93) |
w |
-.316 (8.03) |
-.182 (4.62) |
X |
-.316 (8.03) |
.000 (.000) |
Y |
-.316 (8.03) |
+.182 (4.62) |
z |
-.158 (4.01) |
+.273 (6.93) |
a |
.000 (.000) |
+.182 (4.62) |
b |
+.158 (4.01) |
+.091 (2.31) |
c |
+.158 (4.01) |
-.091 (2.31) |
d |
.000 (.000) |
-.182 (4.62) |
e |
-.158 (4.01) |
-.091 (2.31) |
f |
-.158 (4.01) |
+.091 (2.31) |
g |
.000 (.000) |
.000 (.000) |
Al |
ternate insert positions |
|||
A degrees |
||||
w |
X |
Y |
z |
|
90 |
225 |
255 |
----- |
|
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
24 |
31 |
31 |
16 |
I |
All |
MS33716-31 MS27737-31 |

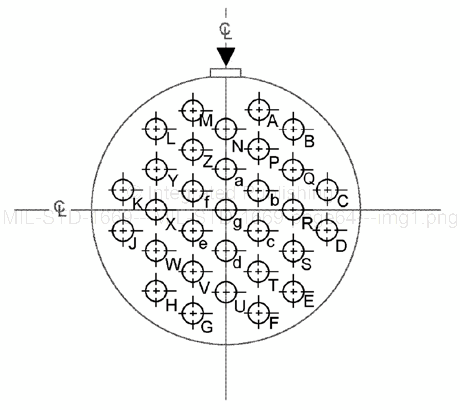

FIGuRE 10. Shell size 24 - Continued.
