MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
M |
.000 (.000) |
+.175 (4.44) |
N |
+.154 (3.91) |
+.062 (1.57) |
p |
+.094 (2.39) |
-.122 (3.10) |
R |
-.094 (2.39) |
-.122 (3.10) |
S |
-.154 (3.91) |
+.062 (1.57) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
238 |
318 |
333 |
347 |
Shell size |
Arrangement Number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
16 |
16 |
16 |
II |
All |
MS33714-16 |

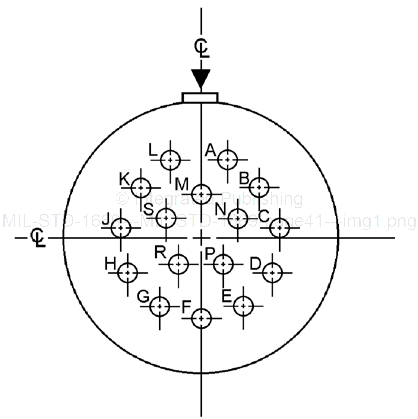

FIGURE 8. Shell size 20.
36
