MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
T |
+.210 (5.33) |
-.156 (3.97) |
u |
.000 (.000) |
-.255 (6.48) |
v |
-.210 (5.33) |
-.156 (3.97) |
w |
-.301 (7.64) |
.000 (.000) |
X |
-.270 (6.86) |
+.130 (3.30) |
Y |
-.184 (4.67) |
+.239 (6.07) |
z |
+.137 (3.48) |
+.103 (2.62) |
a |
+.088 (2.23) |
-.022 (0.56) |
b |
-.088 (2.23) |
-.022 (0.56) |
c |
-.137 (3.48) |
+.103 (2.62) |
d |
.000 (.000) |
+.075 (1.90) |
Al |
ternate insert positions |
|||
A degrees |
||||
w |
X |
Y |
z |
|
45 |
110 |
140 |
225 |
|
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
24 |
27 |
11 |
20 |
I |
p, R, S, w, X, Y, z, a, b, c, d |
MS33716-27 |
16 |
12 |
Remainder |

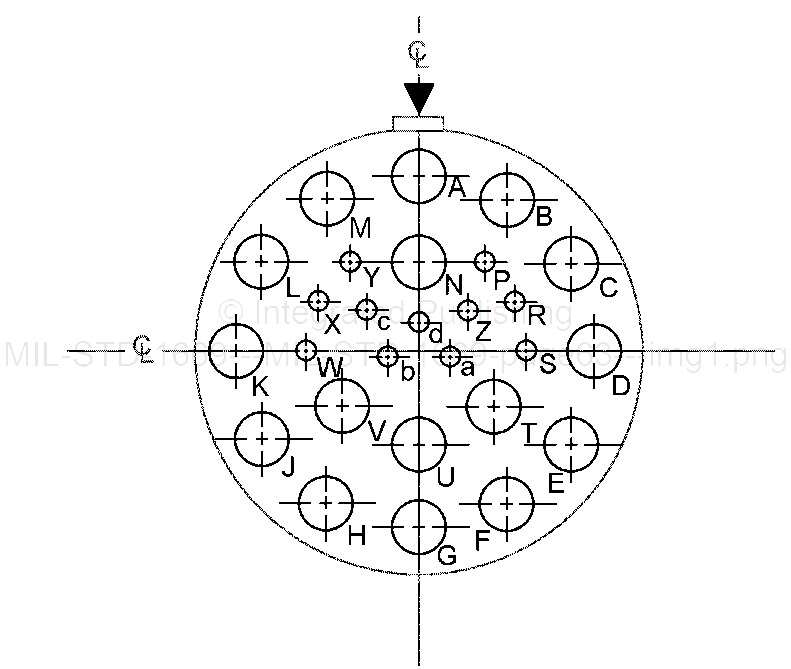

FIGuRE 10. Shell size 24 - Continued.
