MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.191 (4.85) |
B |
-.191 (4.85) |
.000 (0.00) |
C |
.000 (0.00) |
-.191 (4.85) |
D |
+.191 (4.85) |
.000 (0.00) |
E |
.000 (0.00) |
.000 (0.00) |
Shell size |
Arrangement number. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
14 |
22 |
4 |
12 |
I |
A, B, C, D |
M33711-22 |
1 |
20 |
E |

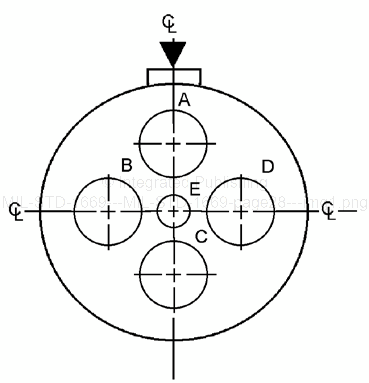

FIGURE 5. Shell size 14 - Continued.
