MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.105 (2.67) |
+.260 (6.60) |
B |
+.250 (6.35) |
+.132 (3.35) |
C |
+.275 (6.99) |
-.053 (1.35) |
D |
+.179 (4.55) |
-.215 (5.46) |
E |
.000 (.000) |
-.281 (7.14) |
F |
-.179 (4.55) |
-.215 (5.46) |
G |
-.275 (6.99) |
-.053 (1.35) |
H |
-.250 (6.35) |
+.132 (3.35) |
J |
-.105 (2.67) |
+.260 (6.60) |
K |
.000 (.000) |
+.105 (2.67) |
L |
.000 (.000) |
-.092 (2.34) |
Shell size |
Arrangement No. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
11 |
11 |
16 |
II |
All |
MS33713-11 |

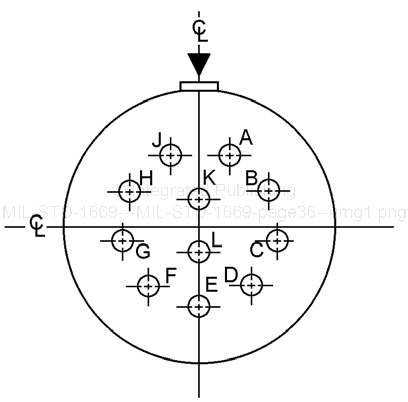

FIGURE 7. Shell size 18 - Continued.
31
