MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.065 (1.65) |
+.157 (3.99) |
B |
+.170 (4.32) |
.000 (0.00) |
C |
+.120 (3.05) |
-.120 (3.05) |
D |
.000 (0.00) |
-.170 (4.32) |
E |
-.120 (3.05) |
-.120 (3.05) |
F |
-.170 (4.32) |
.000 (0.00) |
G |
-.065 (1.65) |
+.157 (3.99) |
H |
.000 (0.00) |
+.044 (1.12) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
12 |
8 |
8 |
20 |
I |
All |
MS33710-8 MS27727-8 |

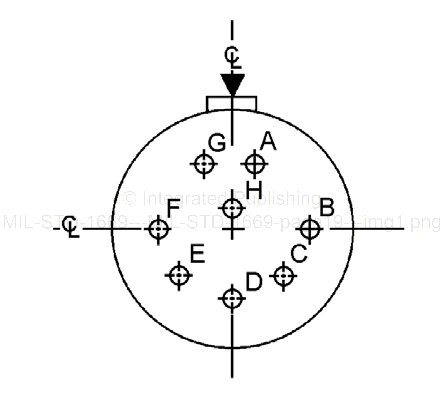

FIGURE 4. Shell size 12 - Continued.
14
