MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.162 (4.11) |
B |
+.115 (2.92) |
+.261 (6.83) |
C |
+.200 (5.08) |
.000 (0.00) |
D |
+.143 (3.63) |
-.250 (6.35) |
E |
.000 (0.00) |
-.162 (.411) |
F |
-.143 (3.63) |
-.250 (6.35) |
G |
-.200 (5.08) |
.000 (0.00) |
H |
-.115 (2.92) |
+.261 (6.83) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
16 |
95 |
6 |
20 |
I |
A, B, D, E, F, H |
MS33712-95 |
2 |
8 shielded. Not applicable to series 2 (rear release connectors) |
C, G |

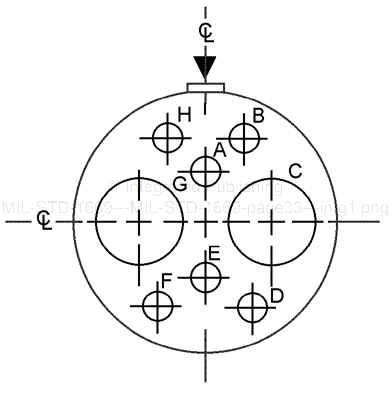

FIGURE 6. Shell size 16 - Continued.
28
