MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.169 (4.29) |
B |
+.169 (4.29) |
.000 (0.00) |
C |
.000 (0.00) |
-.169 (4.29) |
D |
-.169 (4.29) |
.000 (0.00) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
14 |
4 |
4 |
12 Power |
I |
All |
MS33711-4 |

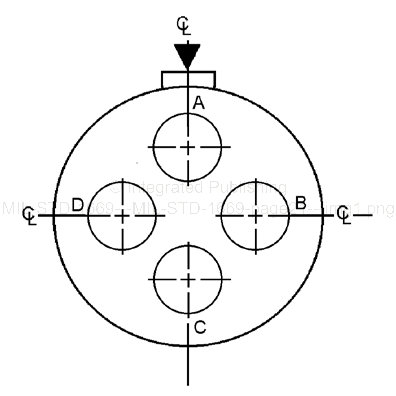

FIGURE 5. Shell size 14.
