MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
S |
.000 (.000) |
-.228 (5.79) |
T |
-.197 (5.00) |
-.114 (2.90) |
u |
-.197 (5.00) |
+.114 (2.90) |
v |
.000 (.000) |
.000 (.000) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
15 |
90 |
225 |
308 |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
22 |
19 |
19 |
12 |
I |
All |
MS33715-19 |

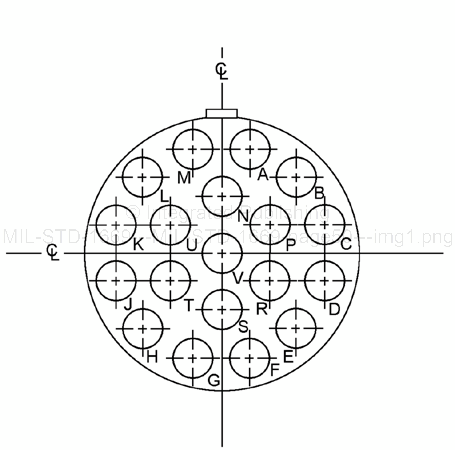

FIGuRE 9. Shell size 22 - Continued.
45
