MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.094 (2.39) |
+.058 (1.47) |
B |
.000 (0.00) |
-.111 (2.82) |
C |
-.094 (2.39) |
+.058 (1.47) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
12 |
3 |
3 |
16 |
II |
All |
MS33710-3 |

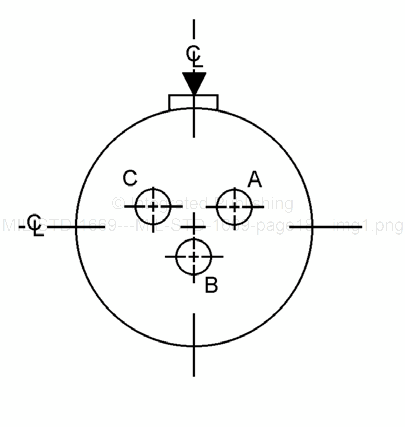

FIGURE 4. Shell size 12.
