MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
w |
+.209 (5.31) |
+.095 (2.41) |
X |
+.228 (5.79) |
-.033 (0.84) |
Y |
+.174 (4.42) |
-.151 (3.83) |
z |
+.065 (1.65) |
-.221 (5.61) |
a |
-.065 (1.65) |
-.221 (5.61) |
b |
-.174 (4.42) |
-.151 (3.83) |
c |
-.228 (5.79) |
-.033 (0.84) |
d |
-.209 (5.31) |
+.095 (2.41) |
e |
-.124 (3.15) |
+.193 (4.90) |
f |
.000 (0.00) |
+.096 (2.44) |
g |
+.096 (2.44) |
.000 (0.00) |
h |
.000 (0.00) |
-.096 (2.44) |
j |
-.096 (2.44) |
.000 (0.00) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
85 |
138 |
222 |
265 |
Shell size |
Arrangement Number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
18 |
32 |
32 |
20 |
I |
All |
MS33713-32 |

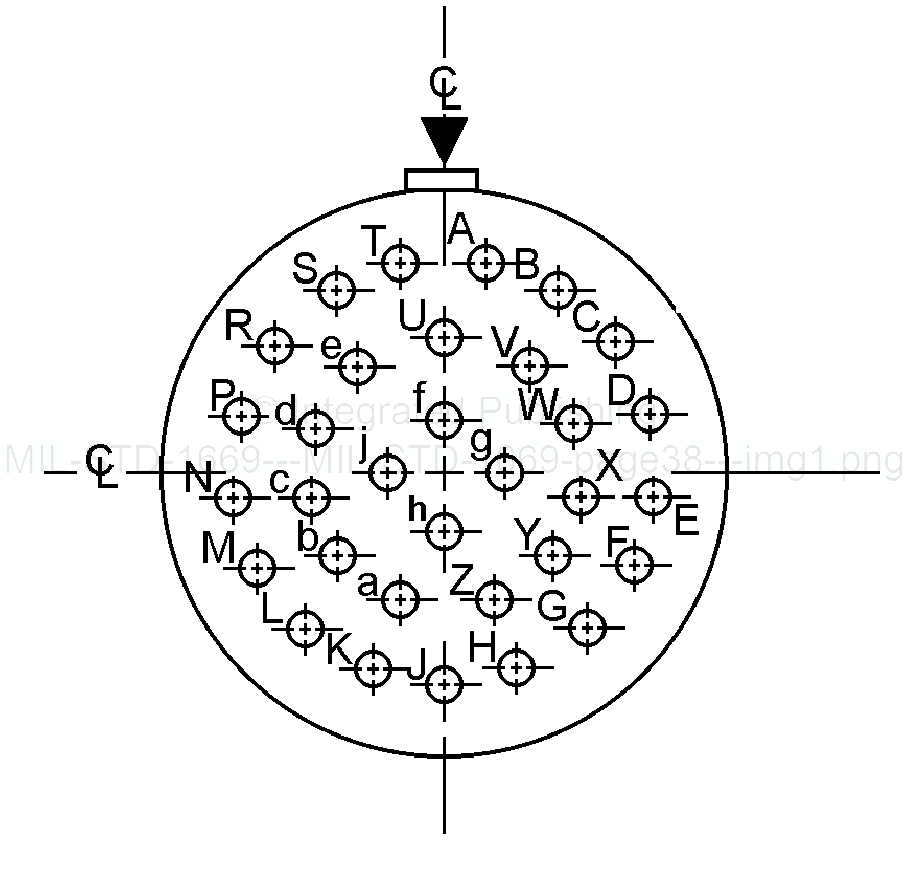

FIGuRE 7. Shell size 18 - Continued.
33
