MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
R |
-.131 (3.33) |
+.293 (7.44) |
S |
-.070 (1.78) |
+.177 (4.50) |
T |
+.070 (1.78) |
+.177 (4.50) |
u |
+.175 (4.44) |
+.094 (2.39) |
v |
+.150 (3.81) |
-.075 (1.90) |
w |
.000 (0.00) |
-.161 (4.09) |
X |
-.150 (3.81) |
-.075 (1.90) |
Y |
-.175 (4.44) |
+.094 (2.39) |
z |
.000 (0.00) |
+.025 (0.63) |
Alte |
rnate insert positions |
||
A degrees |
|||
w |
X |
Y |
z |
66 |
156 |
223 |
340 |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
16 |
99 |
2 |
16 |
I |
w, z |
MS33712-99 |
21 |
20 |
Remainder |

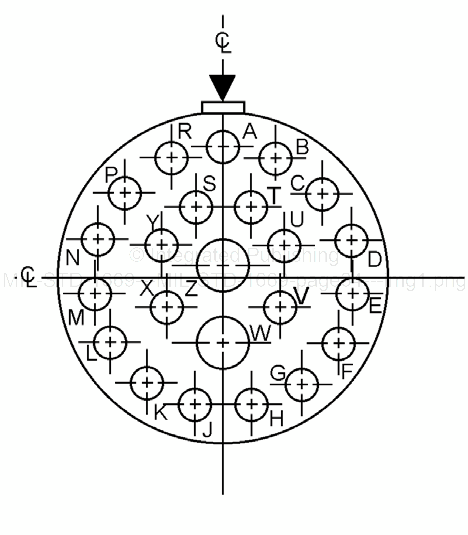

FIGuRE 6. Shell size 16 - Continued.
29
