MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.268 (6.81) |
B |
+.178 (4.52) |
+.266 (6.76) |
C |
+.268 (6.81) |
+.173 (4.39) |
D |
+.268 (6.81) |
-.005 (.130) |
E |
+.165 (4.19) |
-.212 (5.38) |
F |
.000 (0.00) |
-.320 (8.13) |
G |
-.165 (4.19) |
-.212 (5.38) |
H |
-.268 (6.81) |
-.005 (.130) |
J |
-.268 (6.81) |
+.173 (4.39) |
K |
-.178 (4.52) |
+.266 (6.76) |
L |
+.142 (3.61) |
+.139 (3.53) |
M |
.000 (0.00) |
-.146 (3.71) |
N |
-.142 (3.61) |
+.139 (3.53) |
p |
.000 (0.00) |
+.032 (0.81) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
16 |
14 |
8 |
20 |
I |
B, C, F, J, K, L, M, N |
MS33712-14 |
6 |
12 |
A, D, E, G, H, p |

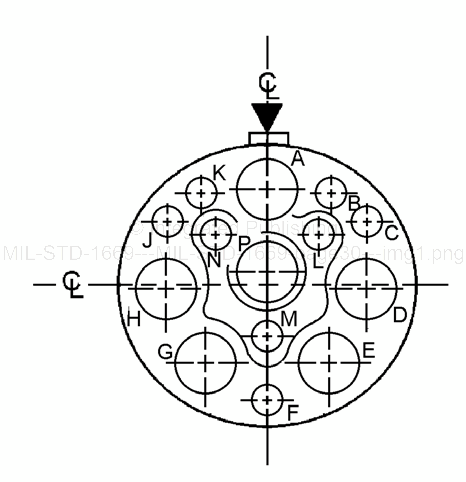

FIGURE 6. Shell size 16 - Continued.
25
