MIL-STD-1669A
w/CHANGE 1
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
.000 (0.00) |
+.130 (3.30) |
B |
+.113 (2.87) |
+.065 (1.65) |
C |
+.113 (2.87) |
-.065 (1.65) |
D |
.000 (0.00) |
-.130 (3.30) |
E |
-.113 (2.87) |
-.065 (1.65) |
F |
-.113 (2.87) |
+.065 (1.65) |
Shell size |
Arrangement number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
10 |
6 |
6 |
20 |
I |
All |
MS33709-6 |

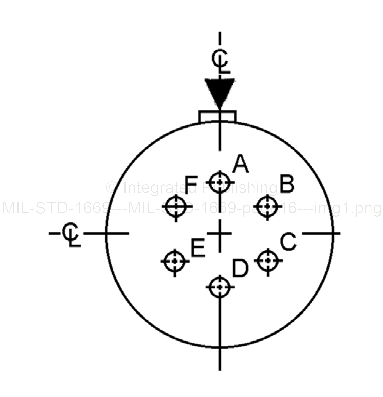

FIGURE 3. Shell size 10.
11
